Forum layout issue

[Neil E.]

At this point, I thought I'd be working on a final color scheme, but I still have much to learn about XF. I did not go with a predefined style since I wanted to learn how to do this stuff myself. I have NO prior experience with HTML, CSS or templates. This XF support forum has been very helpful (the only formal computer training I have is from the days of key punch terminals and card readers).

I have come up with a layout I like, but the major issue is appearance on different browsers and at different resolutions. This is the forum location: www.odsc.on.ca/.xenforo/index.php

I added an image at the top of the forum and also a rotating ad beside the logo. These are giving me the most trouble. New template forum_image_top contains:

<div class=imageTop><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/RRTA90070.jpg" />
</div>

This is inserted into XF template logo_block as follows:

<div id="logoBlock">
<div class="pageWidth">
<div class="pageContent">
<xen:include template="forum_image_top" />
<xen:hook name="header_logo">
<div id="logo"><a href="{$logoLink}">
<span><xen:comment>This span fixes IE vertical positioning</xen:comment></span>
<img src="@headerLogoPath" alt="{$xenOptions.boardTitle}" />
</a></div>
</xen:hook>
<xen:include template="ad_header" />

Rotating ads are done using XF template ad_header as follows:

<xen:hook name="ad_header" />
<div class="rotatingAd">
<xen:set var="$banners.1"><a href="http://www.trailtekadv.com" target=_blank</a><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" /></xen:set>
etc.
etc.
<xen:set var="$banners.16"><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/XC1.jpg" /></xen:set>
{xen:raw '$banners.{xen:calc '({$serverTime} % 16) + 1'}'}
</div>

Here is the matching CSS:

.imageTop
{
height: 70px !important;
width: 80% !important;
padding-top: 5px !important;
margin-left: auto !important;
margin-right: auto !important;
}
/* ~ODSC RRTA image at top of header~ */

#content
{
margin-top: 70px !important;
}
/* ~move content down to match height of new forum_image_top~ */

.rotatingAd
{
float: none !important;
height: 99px !important;
width: 600px !important;
border-top: 1px solid transparent !important;
border-right: 1px solid transparent !important;
border-bottom: 1px solid transparent !important;
border-left: 1px solid transparent !important;
border-radius: 10px 10px 10px 10px !important;
overflow: hidden !important;
position: relative !important;
top: 40px !important;
left: 60px !important;
}
/* ~style ad_header and restrict location on window resize~ */

Actual problems:

1) Depending on the browser (eg IE vs IE 64bit etc.) I get a situation where the content doesn't move down to match the added height of the top image. This places the breadbox in conflict with the NavTabs. Also the fonts in a couple of the NavTabs go nutty.

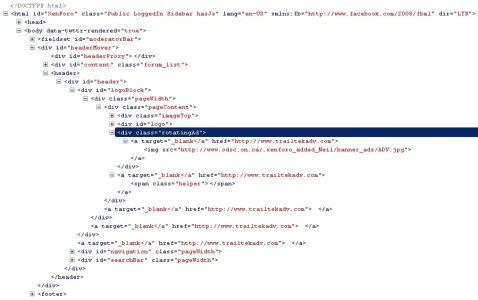

2) When I use Firebug to inspect the page, the rotating ad links appear in multiple locations. The actual page looks fine.

I'm hoping someone can explain these oddities or perhaps a better way to achieve the layout I want.



[Neil E.]

The extra rotating ad links are what's bugging me the most. I can't figure out where they are coming from.



[Jon W]

Looks like you have some dodgy HTML in there that is causing the browser to spit out extra links:

<a href="http://www.trailtekadv.com" target=_blank</a><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" />

Shouldn't it be something more like:

<a href="http://www.trailtekadv.com" target="_blank"><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" /></a>



[Neil E.]

I totally agree that something is dodgy and I was hopeful your idea was right, but no go.
One small point is that target=_blank should be target="_blank" to be correct.


original code (generates multiple links)

<xen:set var="$banners.1"><a href="http://www.trailtekadv.com" target=_"blank"</a><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" /></xen:set>

Waindigo code (generates single link only, but then image does not show)

<xen:set var="$banners.1"><a href="http://www.trailtekadv.com" target=_"blank"<img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" /></xen:set></a>

alternate try with </a> inside </xen:set> (same result, generates single link only, but image does not show)

<xen:set var="$banners.1"><a href="http://www.trailtekadv.com" target=_"blank"<img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" /></a></xen:set>

At this point I'm hoping that once Jake has finished his New Year's partying, he will provide some wisdom.
What I have done is based on his code http://xenforo.com/community/resources/display-a-random-banner.375/


I suspect that the <xen:set var=$banners.1"> </xen:set> cannot support a link. It works fine with images only.
Does anyone else have this working with links included?



[Jon W]

You have copied my code incorrectly. In fact you've made 3 mistakes:

• I didn't include the <xen:set> tag in my code, and you have then added it to my code incorrectly by putting the </xen:set> tag before the </a>.
• I also included a > after "_blank" which you have missed. This is what was causing your issue.
• I put "_blank" and not _"blank".

You should have:

<xen:set var="$banners.1"><a href="http://www.trailtekadv.com" target="_blank"><img src="http://www.odsc.on.ca/.xenforo_added_Neil/banner_ads/ADV.jpg" /></a></xen:set>



[Neil E.]

Sorry, you are absolutely correct.

target="_blank" was meant to be a comment on my own mistake.
I didn't actually do a physical copy of your correct code (just typed what I thought I had noticed as the changes; not much wonder it still didn't work).
The missing '>' was definitely the cause of all my problems.

Thanks for the assistance, I am humbled by all the knowledge that is handed out to beginners.
