Design issue Wysiwyg editor and \t (tab) bug

Ralle

Active member
#1
Hey guys. I just came across a bug in the WYSIWYG editor in XenForo.

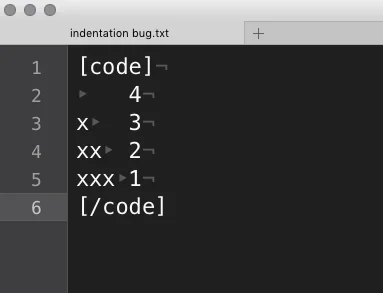

1. Copy the text from the file "indentation bug.txt" into first the WYSIWYG editor.
2. Press preview.

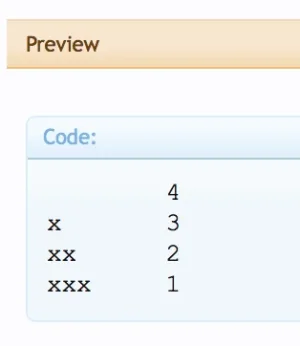

3. It shows this:
Screenshot 2017-04-09 16.35.16.png
Which is not expected.

Now, try this:
1. Copy the text from the file "indentation bug.txt" into first the plain text editor.
2. Press preview.

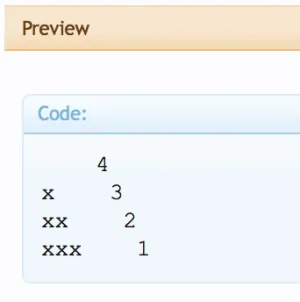

3. It shows this:
Screenshot 2017-04-09 16.35.25.png

Many users on my site share code with each other and are having problems with the rich text editor screwing up indentation in their code.


Attachments

xenfans

Well-known member
#2
Showing tabs and spaces and returns in my editor, I see it shows fine, indents as expected, etc. I can repeat this on my site as well.
I have had this so many times, it's utterly frustrating and makes running a site for code sharing a lot harder.

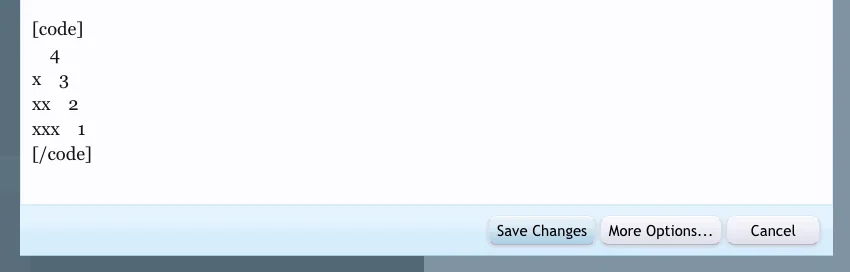

Screen Shot 2017-04-09 at 21.24.46.png

Screen Shot 2017-04-09 at 21.26.35.png

Code:
    4
x    3
xx    2
xxx    1


Ralle

Active member
#3
I just had a look. Turns out in the file bb_code_edit.js there is a function called pasteCleanUpCallback.
In two places I found the code:
Code:
                    return b.replace(/\t/g, "    ").replace(/  /g, "  ").replace(/  /g, "  ")

                    b.length ? (c = "<p>" + b.replace(/\r?\n/g, "</p><p>") + "</p>", c = c.replace(/\t/g, "    ").replace(/<p> /g, "<p>&nbsp;").replace(/  /g,
Which naively replaces a tab with 4 spaces without paying attention to the column.

I also found a method called insertCode which has this piece:
Code:
e = e.replace(/&/g, "&amp;").replace(/</g, "&lt;").replace(/>/g, "&gt;").replace(/"/g, "&quot;").replace(/\t/g, "    ").replace(/\n /g, "\n&nbsp;").replace(/  /g, "&nbsp; ").replace(/  /g, " &nbsp;").replace(/\n/g, "</p>\n<p>");
It seems to do the same thing.

I might for kicks write up a patch when I get time.


Mike

XenForo developer
Staff member
#5
There are limitations of the RTE with tab characters, as such we translate them to 4 spaces. This isn't something we expect to change at this time.
