XF 2.0 What is the correct way to include custom js in style properties?

[CyberAP]

Let's say I have a custom style property group and want to add some js color processing on the fly, what would be the correct way to include my js there?



[Mike]

This is likely to be something that's more under the scope of an add-on. You could likely do it with a custom template type style property. (There may be some other hacks, probably involving the description, but I wouldn't necessarily recommend those.)



[CyberAP]

This is likely to be something that's more under the scope of an add-on. You could likely do it with a custom template type style property. (There may be some other hacks, probably involving the description, but I wouldn't necessarily recommend those.)

Thank you, I have looked up XF\Entity\StyleProperty.php and it seems like it's not possible since _preSave() is a protected function and only allows 'Value' and 'CSS' types, ignoring others and always returning an error. Or this can be somehow ignored?



[CyberAP]

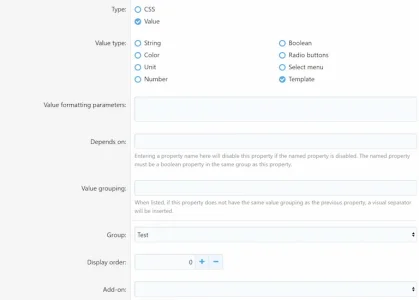

Sorry, my bad, it already supports template inclusion for value type. Though it is not clear how do I reference a template here:



[Chris D]

Enter the template name in "Value formatting parameters".



[CyberAP]

Enter the template name in "Value formatting parameters".

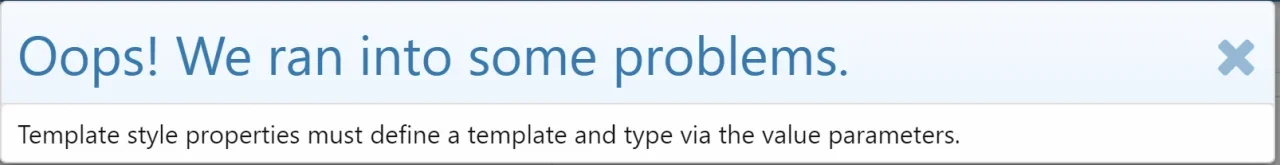

I tried, it says:


I tried referencing as: my_template and public:my_template. Neither did work.



[Chris D]

Oh, I neglected a point.

Because value parameters can include other bits of info, the parameters need to be in key => value pairs, so you'd enter:

template=public:my_template

See the messageUserElements property for an example.



[CyberAP]

Oh, I neglected a point.

Because value parameters can include other bits of info, the parameters need to be in key => value pairs, so you'd enter:

template=public:my_template

See the messageUserElements property for an example.

Thank you, there's another caveat to that. There must be 2 elements there: template and type. If the first one is obvious, the second one can only be guessed by looking into the source code, and I found out that there are only 2 types supported there: array and scalar. So my final code looked like this:

template=public:my_template
type=scalar

This is very unclear for the first time, maybe it'd be worth adding some info in the error message?



[PhoenixR]

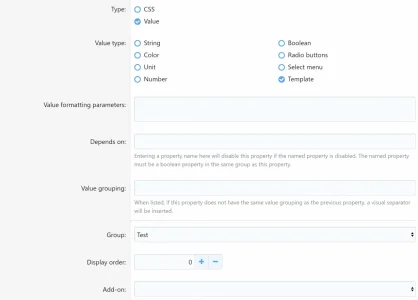

Does anyone know how to get to the screen which @CyberAP posted above, where you can set up a custom property in a style? The screen that looks like this:




I am trying to add a custom property to a style, but do not know how to get to the screen above which allows you to define a new custom property. I am using Xenforo 2.0.



[PhoenixR]

I've just realized that in order to add a new custom property, you have to be in debug mode (it states that here).

As a workaround, instead of switching on debug mode, I just exported the Xenforo forum style (from Appearance > Styles > ... > Export), and edited the document to add a new custom property, by adding the following code (which adds a custom property to control color):

<property property_name="nameOfCustomProperty" group_name="palette" title="Short description of custom property" description="Long description of custom property" property_type="value" value_type="color" depends_on="" value_group="" display_order="50" addon_id="">
      <value>"rgb(0, 0, 0)"</value>
</property>

This adds a custom property named nameOfCustomProperty, which can be referenced in any CSS stylesheet as the variable @xf-nameOfCustomProperty.

I then just re-imported the edited style back into the Xenforo.
