MP3 Attachment Player

Discussion in 'Template Modifications [Archive]' started by jacko, Nov 11, 2010.

  1. jacko

    jacko Active Member

    in attached_files template find this line:
    PHP:
    <dl><dt>{xen:phrase file_size}:</dt> <dd>{xen:number $attachment.file_sizesize}</dd></dl>
    ...and above add this:

    PHP:
    <xen:if is="{$attachment.extension} == 'mp3' ">
    <
    embed type="application/x-shockwave-flash" src="audio-player.swf?audioUrl={xen:link attachments, $attachment}" width="350" height="27" allowscriptaccess="never" quality="best" bgcolor="#ffffff" wmode="window" flashvars="playerMode=embedded">
    </
    xen:if>
    in attached_files.css find:
    PHP:
    .attachment

    {

    floatleft;

    width33%;
            }
    and change width value from 33% to 490px or some other value that you find more suitable

    For this to work you need to get audio-player.swf file from Google. Currently the player is available here: http://www.google.com/reader/ui/3523697345-audio-player.swf

    Of course other flash mp3 players can be used too.

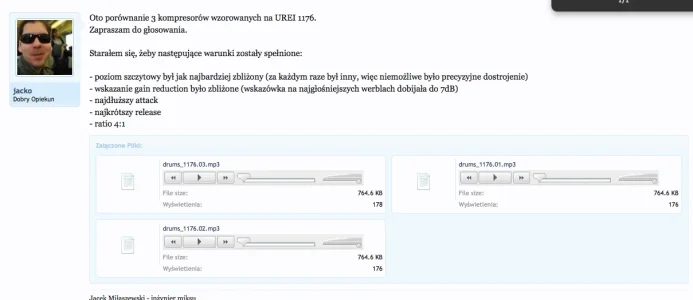

    The player will look like this:
    Screen shot 2010-11-11 at 21.01.32.png

    7OKE, Jake Bunce, cherjo and 15 others like this.
  2. Cezz

    Cezz Well-Known Member

    Thanks for this share... I would like to make a few suggestions...

    1. In your example you didn't close the <xen:if> you need to add another line with </xen:if>
    2. I would suggest making the default use the HTML5 audio tag, with the flash as a fall back option... EG
      HTML:
      <xen:if is="{$attachment.extension} == 'mp3' ">
           <audio src="{xen:link attachments, $attachment}" controls="controls">
             <embed type="application/x-shockwave-flash" src="audio-player.swf?audioUrl={xen:link attachments, $attachment}" width="350" height="27" allowscriptaccess="never" quality="best" bgcolor="#ffffff" wmode="window" flashvars="playerMode=embedded">
           </audio>
       </xen:if>
    3. I would also suggest doing the same for other media formats, ogg ETC...
      HTML:
      <xen:if is="{$attachment.extension} == 'mp3||ogg' ">

  3. jacko

    jacko Active Member

    Thank you!

    I fixed the code - I overlooked this important detail when I pasted it.

  4. jacko

    jacko Active Member

    I tried to use that, but for some reason the html5 player shows up for half a second and then there is only grey box with big X on it... Any idea why?

    edit: I think I know why - Firefox doesn't support mp3 in audio tags.

  5. Cezz

    Cezz Well-Known Member

  6. kkm323

    kkm323 Well-Known Member

    thanx man
    great work
    i'll try this later

  7. Darfuria

    Darfuria Active Member

    This works very nicely indeed :)

  8. kkm323

    kkm323 Well-Known Member

    this is another flash player

    unzip the attachment
    download it to the root


    go to: attached_files
    above this
    Code:
    <dl><dt>{xen:phrase file_size}:</dt> <dd>{xen:number $attachment.file_size, size}</dd></dl>

    and but this code
    Code:
    <xen:if is="{$attachment.extension} == 'mp3' ">
    <script language="JavaScript"  src="http://www.website.com.com/flash/audio-player.js"></script>
    <object type="application/x-shockwave-flash"  data="http://www.website.com/flash/player.swf" id="audioplayer4"  height="24" width="250">
    <param name="movie"  value="http://www.website.com/flash/player.swf">
    <param name="FlashVars"  value="playerID=4&amp;soundFile={xen:link attachments,  $attachment}">
    <param name="quality" value="high">
    <param name="menu" value="false">
    <param name="wmode" value="transparent">
    </object>
         </xen:if>


    Attached Files:

    Lemminator, maxicep, Veer and 2 others like this.
  9. Floris

    Floris Guest

    That's awesome! Great for my podcast community :D

    huge +1

  10. Trombones13

    Trombones13 Well-Known Member

    I must be missing something here. :/ How do I make it so XF allows MP3 uploads? .mp3 isn't a compatible file extension by default. o_O

  11. kkm323

    kkm323 Well-Known Member

    ACP (admin control panel) ---> setting ---> attachment

    Trombones13 likes this.
  12. Trombones13

    Trombones13 Well-Known Member

    Ah; told you I was missing something! :D

    Is there an issue with Beta 3 where the attachment doesn't do anything once you hit 100% (it stays on the filled bar instead of changing to allow insertion of thumbnail/full)? I've had that with pictures and now this as well. :/

  13. Brogan

    Brogan XenForo Moderator Staff Member

    Trombones13 likes this.
  14. DSF

    DSF Well-Known Member

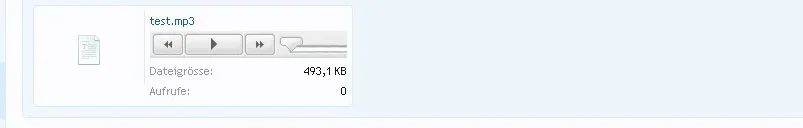

    After update B3 -> B4 the mp3 attachement shows as below. What can I do?


  15. Vincent

    Vincent Well-Known Member

    What is the exact problem?
    Is it that the bar is only half shown?

  16. DSF

    DSF Well-Known Member

    Yeah, after update the bar only show half :eek:

  17. Vincent

    Vincent Well-Known Member

    Does your template attached_files look like this?
    Code:
    <xen:require css="attached_files.css" />

    <div class="attachedFiles secondaryContent">
        <h4 class="attachedFilesHeader">{xen:phrase attached_files}:</h4>
        <ul class="attachmentList">
            <xen:foreach loop="$post.attachments" value="$attachment">
                <li class="attachment{xen:if {$attachment.thumbnailUrl}, ' image'}" title="{$attachment.filename}">
                    <div class="boxModelFixer primaryContent">

                        <div class="thumbnail">
                            <xen:if is="{$attachment.thumbnailUrl}">
                                <a href="{xen:link attachments, $attachment}" target="_blank" class="LightBoxTrigger"><img
                                    src="{$attachment.thumbnailUrl}" alt="{$attachment.filename}" class="LightBoxImage"
                                    data-src="{xen:link attachments, $attachment, 'embedded=1'}" /></a>
                            <xen:else />
                                <a href="{xen:link attachments, $attachment}" target="_blank"><img
                                    src="@imagePath/xenforo/widgets/page.png" alt="{$attachment.filename}" /></a>
                            </xen:if>
                        </div>

                        <div class="attachmentInfo pairsJustified">
                            <h6 class="filename"><a href="{xen:link attachments, $attachment}" target="_blank">{$attachment.filename}</a></h6>
                            <xen:if is="{$attachment.extension} == 'mp3' ">
                                <embed type="application/x-shockwave-flash" src="audio-player.swf?audioUrl={xen:link attachments, $attachment}" width="350" height="27" allowscriptaccess="never" quality="best" bgcolor="#ffffff" wmode="window" flashvars="playerMode=embedded">
                            </xen:if>
                            <dl><dt>{xen:phrase file_size}:</dt> <dd>{xen:number $attachment.file_size, size}</dd></dl>
                            <dl><dt>{xen:phrase views}:</dt> <dd>{xen:number $attachment.view_count}</dd></dl>
                        </div>
                    </div>
                </li>
            </xen:foreach>
        </ul>
    </div>

    <xen:comment><xen:require css="xenforo.css" /></xen:comment>
    And your attached_files.css like this?
    Code:
    .attachedFiles
    {
        border: 1px solid @primaryLighterStill;
        border-radius: 5px;
        padding-right: 0;
        margin: 10px 0;
    }

        .attachedFiles .attachedFilesHeader
        {
            font-size: 11px;
            font-weight: bold;
            color: @primaryLighter;
        }

        .attachedFiles .attachmentList
        {
            overflow: hidden; zoom: 1;
        }

            .attachment
            {
                float: left;
                width: 33%;
            }

            .attachment .boxModelFixer
            {
                overflow: hidden; zoom: 1;
                margin-top: 10px;
                margin-right: 10px;
                padding: 5px;
                background-color: @contentBackground;
                border: 1px solid @primaryLighterStill;
                border-radius: 5px;
            }

                .attachment .thumbnail
                {
                    float: left;
                    width: 100px;
                    height: 75px;
                    line-height: 75px;
                    text-align: center;
                    border-right: 1px solid @primaryLighterStill;
                    padding-right: 5px;
                }

                    .attachment .thumbnail img
                    {
                        max-height: 75px;
                        vertical-align: middle;
                    }

            .attachment .attachmentInfo
            {
                overflow: hidden; zoom: 1;
                font-size: 11px;
                padding-left: 5px;
            }

                .attachment .attachmentInfo h6,
                .attachment .attachmentInfo dl
                {
                    padding: 3px 0;
                }
    If not the same, use this one ;)
    I guess that this should fix the problem.

  18. jacko

    jacko Active Member

    in attached_files.css find:
    PHP:
    .attachment

    {

    floatleft;

    width33%;
            }
    and change width value from 33% to 490px or some other value that you find more suitable

    Mutt likes this.
  19. DSF

    DSF Well-Known Member

    Yes, it's look like this.

    Many thanks. It's ok now again.

  20. Salty

    Salty Active Member

    great mod, having some trouble with .avi though~
