Custom BBCode and Wysiwyg

Discussion in 'XenForo Development Discussions' started by Snog, Aug 1, 2013.

  1. Snog

    Snog Well-Known Member

    OK, here's my problem...

    I've extended formatter/Base.php to add 3 new BBCodes and that works perfectly. The new BBCodes are displayed properly in posts.

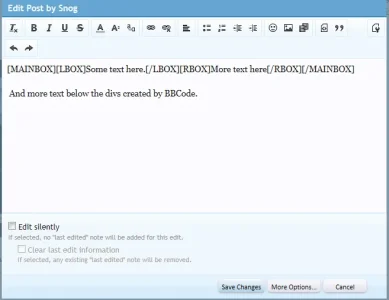

    When I edit a post with the custom BBCodes in it I get this...


    I figured that could be solved by extending the formatter/Wysiwyg.php with this code..

    Code:
    <?php

    class Snog_MyMod_BbCode_Formatter_Wysiwyg extends XFCP_Snog_MyMod_BbCode_Formatter_Wysiwyg
    {

        public function getTags()
        {
            if ($this->_tags !== null)
            {
                return $this->_tags;
            }

            $tags = parent::getTags();

            $tags['mainbox'] = array(
                'hasOption' => false,
                'callback' => array($this, 'renderTagMainbox')
            );

            $tags['lbox'] = array(
                'hasOption' => false,
                'callback' => array($this, 'renderTagLbox')
            );

            $tags['rbox'] = array(
                'hasOption' => false,
                'callback' => array($this, 'renderTagRbox')
            );

            foreach ($tags AS $tagName => &$tag)
            {
                if (in_array($tagName, $this->_undisplayableTags))
                {
                    $tag['callback'] = array($this, 'renderTagUndisplayable');
                    unset($tag['trimLeadingLinesAfter'], $tag['stopLineBreakConversion']);
                }
                else if (isset($this->_tagReplacements[$tagName]))
                {
                    $tag = array_merge($tag, $this->_tagReplacements[$tagName]);
                    if (isset($this->_tagReplacements['replace']))
                    {
                        unset($tag['callback']);
                    }
                }
            }

            return $tags;
        }

        public function renderTagMainbox(array $tag, array $rendererStates)
        {
            $text = $this->renderSubTree($tag['children'], $rendererStates);
            return '<div>' . $text . '</div>';
        }

        public function renderTagLbox(array $tag, array $rendererStates)
        {
            $text = $this->renderSubTree($tag['children'], $rendererStates);
            return '<div style="width:200px;float:left;display:block;vertical-align:top;">' . $text . '</div>';
        }

        public function renderTagRbox(array $tag, array $rendererStates)
        {
            $text = $this->renderSubTree($tag['children'], $rendererStates);
            return '<div class="message messageText" style="height:auto;text-align:left;vertical-align:top;overflow:hidden;">' . $text . '</div>';
        }
    }
    When that code is active, all formatting with the custom BBCodes in the post is lost in the editor.

    Am I missing something, or doing something incorrectly?

    Last edited: Aug 1, 2013
  2. Chris D

    Chris D XenForo Developer Staff Member

    Isn't this behaving the same way way as if you edit a post that contains e.g. quote and code tags?

    Or am I missing something?

    Snog and aiman.h.kallaf like this.
  3. Snog

    Snog Well-Known Member

    I suppose it would be the same as that.

    But, I anticipated the formatting to be viewable in the formatted state in the editor. Like the bold BBCode.

    That's what I would really like to accomplish.

  4. Chris D

    Chris D XenForo Developer Staff Member

    I'm not actually sure what's involved in that.

    There must be a reason why block tags are displayed as they are as it is. It would be cool to be able to WYSIWYG them as well. But there must be a good reason why it isn't done like that already for other BB Codes.

    Maybe it involves edits to Redactor more than the BB Code formatter.

    Snog likes this.
  5. Snog

    Snog Well-Known Member

    I never thought of looking at Redactor. It just might be in there. If that's the case, I'll live with it the way it is.
