As designed Avatar Border Radius affects Online Marker

[[xFv]]

Affected version

XF2 b3

Not sure if this is a bug or by design, but the avatar border radius affects the online marker at the same time.
I did use the style property avatar border radius setting.

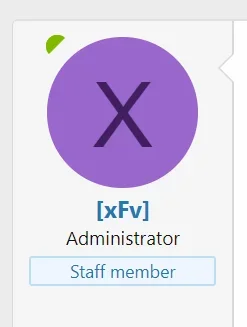

See Below:



[JordanH]

Testing it on the XenForo forums using inspect element doesn't seem to affect it.
What is your site?



[[xFv]]

Testing it on the XenForo forums using inspect element doesn't seem to affect it.
What is your site?

I am using a local install.
When I change border radius in extra.less it does not affect the online marker, only in style properties avatar radius setting.
And I also noticed when using a %, I get a error. Need to use px in border radius setting in style properties.



[DL6]

I think this is as designed, you can see in message.less template

.message-avatar-wrapper
{
    position: relative;
    display: inline-block;
    vertical-align: bottom;

    .message-avatar-online
    {
        position: absolute;
        top: -1px;
        left: -1px;

        border: 7px solid transparent;
        border-left-color: rgb(127, 185, 0);
        border-top-color: rgb(127, 185, 0);
        border-radius: (@xf-avatarBorderRadius + 1) max(0px, @xf-avatarBorderRadius - 1px) 0 max(0px, @xf-avatarBorderRadius - 1);
    }
}

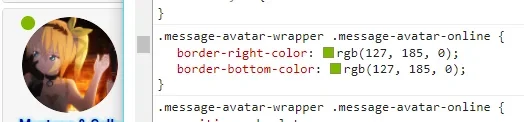

btw, you can make a circular indicator adding:

.message-avatar-wrapper .message-avatar-online {
    border-right-color: rgb(127, 185, 0);
    border-bottom-color: rgb(127, 185, 0);
}



[Mike]

It's intentional, though there isn't really an expectation of taking them entirely round there. Otherwise, it's to attempt to maintain the same radius on the online marker.
