A guide to XenForo 1.2 and templates

The Times They Are a-Changin'. Guide to Templates in XenForo 1.2.

  1. Chris D

    Chris D XenForo Developer Staff Member

    Chris Deeming submitted a new resource:

    A guide to XenForo 1.2 and templates - The Times They Are a-Changin'. Guide to Templates in XenForo 1.2.

    Read more about this resource...

    Moddis, Janmaat, psTubble27 and 3 others like this.
  2. Luxus

    Luxus Well-Known Member

    Template Modifications have an advantage over direct template edits that people may not want to forfeit that easily. Enabling/Disabling template edits by click. With Template Modifications you can also track and document your changes more easily.

    RoldanLT likes this.
  3. Chris D

    Chris D XenForo Developer Staff Member

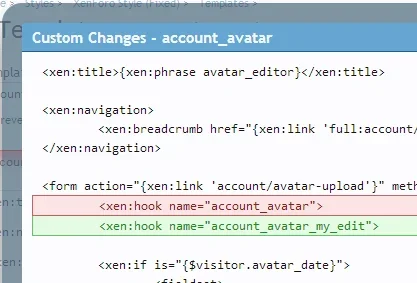

    There's already a facility to track and monitor your changes using the template history and comparison for each template.

    Although not quite as simple as a single click, it's not exactly much more work to go into a template and comment out the code for testing and debug purposes. Or copy and paste the original code from the template comparison:


    Jeremy likes this.
  4. Shelley

    Shelley Well-Known Member

    Top notch guide Chris. :)

    resonansER and Chris D like this.
  5. RoldanLT

    RoldanLT Well-Known Member

    So true!
    Agree (y)

  6. JulianD

    JulianD Well-Known Member

    I know Mike said on the forums that template hooks are being deprecated. I would like to know what is the best approach to make dynamic template changes. I have an addon that manages all my advertising on my forum. It consists of a Listener that allows me to use template hooks. Then, based on different variables, I decide which ads to display to the current user.

    What is the best approach to something like this?

    BTW: Great resource Chris. Thank you for your great efforts!

  7. Luxus

    Luxus Well-Known Member

    Here is an example of doing a template edit directly vs. via TMs:

    Lets say you want to add a notice to all xenforo pages above the h1 title.

    Direct Template Edit:

    - Go to AppearanceTemplates
    - Open the PAGE_CONTAINER template
    - Scroll down until you find "<!-- h1 title, description -->" and copy&paste the following code above it so that it will look like this:

    Code:
    <xen:comment>This is a simple hello world notice above the title of every page</xen:comment>
    <div class="notice" style="color:red; border: 1px solid red; border-radius: 5px; background-color:yellow;padding:5px;text-align:center">Hello World</div>
    <!-- h1 title, description -->
    - Save

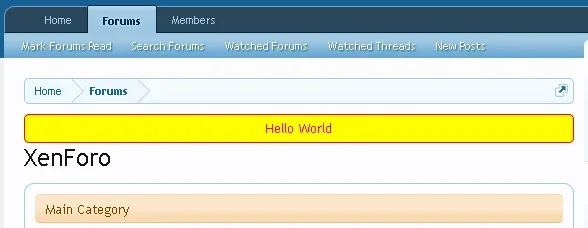

    Result:



    Now we are doing the same but with the Template Modifications method:

    Template Modification:

    - Go to AppearanceTemplate Modifications
    - Click Create Template Modification
    - Enter the following values in the specified fields:

    Template: PAGE_CONTAINER
    Modification Key: pc1
    Description: This is a simple hello world notice above the title of every page
    Search Type: Simple Replacement
    Find: <!-- h1 title, description -->
    Replace:
    Code:
    <div class="notice" style="color:red; border: 1px solid red; border-radius: 5px; background-color:yellow;padding:5px;text-align:center">Hello World</div>
    <!-- h1 title, description -->
    - Click Save Template Modification

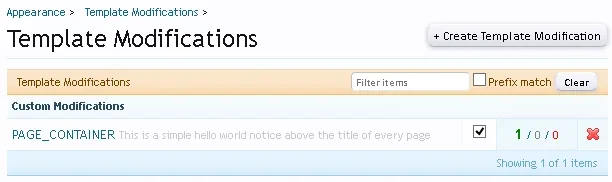

    The result is the same. The difference is how you can manage this template edit. With the TM method, if you want to remove this notice, you need just to uncheck the checkbox of the appropriate TM:


    And in case you want to enable it again, all you need to do is to check the checkbox. Also you can see instantly the name of the template a modification is applied to and what the modification actually does. Easy and convenient.


    With the direct template edit method you actually need to search for the template that contains your edit because unlike the TM method your edits aren't listed. But you don't know what edit you made because it has been some time since you did it so you need to open a template and find the edit you are looking for via the View Custom Changes function. And once you found it, you need to remove your edits directly from the template if you wish to remove the notice we added above the h1 title of every xenforo page. And in case you want to add it back, you need to paste the code again directly in the template.

    Compared to the TM features, direct template edits are still a pain, really. And even these TM features are limited for style developers as you pointed out in your guide.

  8. psTubble27

    psTubble27 Well-Known Member

    A question on terminology:
    What's the difference between "template modifications" and "direct template edits"?

    Great tutorial btw.

  9. Brogan

    Brogan XenForo Moderator Staff Member

    Template Modifications is a new function in 1.2 which injects modifications into templates without changing the original.

    Editing templates directly is a manual process and changes the original template.

    psTubble27 and Chris D like this.
  10. psTubble27

    psTubble27 Well-Known Member

    I can see that being a source of some confusion. Chris even had to devote a paragraph trying to distinguish between the two.

    Here is a sample sentence: "In order to modify templates, don't use template modifications, but rather modify templates".

  11. Brogan

    Brogan XenForo Moderator Staff Member

    Would you prefer the Template Modifications system was called something different which doesn't reflect what it does?

    That's exactly what it does so the name is logical.

  12. psTubble27

    psTubble27 Well-Known Member

    Maybe we can can use the term "Template Mods". Same thing, but people already associate "mods" with a specific bunch of code that alters an original. If you have a new user coming who is asking about editing the sidebar template (say), you tell him:
    1) create a Template Mod if you want,
    2) or modify the template directly.

    Just a suggestion. Anyway I didn't mean to highjack Chris' thread.

  13. Brogan

    Brogan XenForo Moderator Staff Member

    Actually I would just say edit the template.

    Template modifications shouldn't be used for simple edits but if I was going to distinguish between the two it would be:

    1. Create a Template Modification.
    2. Edit the template.

  14. Luxus

    Luxus Well-Known Member

    Perhaps an alternate name could be Template Patches. You write code and the system patches this code to the original templates during the compiling process. You can remove patches anytime by disabling them via checkbox.

    psTubble27 likes this.
  15. Chris D

    Chris D XenForo Developer Staff Member

    Of course I devoted a paragraph explaining them. This is a guide about template features in XenForo 1.2. I can't not describe the functions separately because they are two distinct things.

    MattW likes this.
  16. Kintaro

    Kintaro Well-Known Member

    Can I ask you why? Can create incompatibility with addons?
    Have template modifications listed (like in TM and TMS) and have the possibility to activate/deactivated them with a click is huge!

  17. Brogan

    Brogan XenForo Moderator Staff Member

    Chris D likes this.
  18. Chris D

    Chris D XenForo Developer Staff Member

    If Template Modifications work for you, great. Knock yourself out.

    But the point of this guide was to explain the options available to people. And to ensure people have an understanding of how direct template edits are no longer a thing to avoid.

    Maybe that didn't come across in the guide.

    Primarily the TM system is a development tool. If you have specific things that you find easier to achieve in the TM system, no one is going to stop you :)

    On the flip side, the main reason people used any sort of TM style system in the first place was because of a (understandable) reluctance to make direct template edits.

    The reason for that reluctance was because of an inability to easily compare the changes between an upgraded template and a directly edited template. The only choice was to revert and manually reapply.

    That reluctance and reasoning is now entirely void. Direct template edits should no longer by default be avoided. If you can do them, do them.

    At the same time, if you prefer to use the TM system -- no one is going to stop you.

    It's all about options. There's now many more.

    Shelley, MattW and KenSmith like this.
  19. Code Monkey

    Code Monkey Well-Known Member

    With a template modification system I only have to go find and fix what breaks on updates. With template merge I have to go through all the templates and make choices on every update. The latter seems to be much more work and I also can't just turn an edit off if I wish to.

    So while I may yet embrace this NEW thinking I am not sold on it yet. More work = Bad

  20. Despair

    Despair Active Member

    In most cases it's actually just clicking one button, "Automatically merge all templates" or something similar. Only if a conflict is found would you need to manually make a choice. I've gone through at least 4-5 releases and didn't even run into a conflict yet.
