The rich text editor

Discussion in 'Styling and Customization Questions' started by Brax, Sep 6, 2012.

  1. Brax

    Brax Member

    Is there a way to change the border color, the background color, and the available options of the RTE?

  2. Jake Bunce

    Jake Bunce XenForo Moderator Staff Member

    Admin CP -> Appearance -> Style Properties -> Message Layout -> Rich Text Editor Content

  3. Brax

    Brax Member

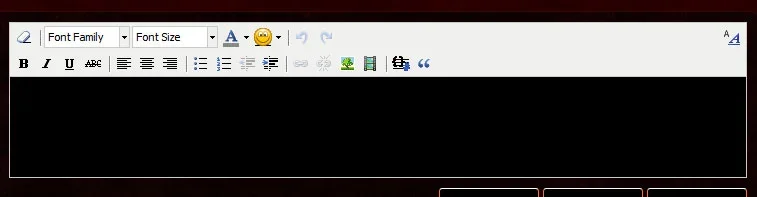

    I don't think that's it. If you take a peek at the image I am including, you'll see I currently have a white border around the whole textarea field. I want to change that. I would also like to change the background color where the icons are, not where you enter your text. Lastly, I'm wondering if there is a way to shut off some of those icons. For example, what If I don't want my forum-goers to upload multi-media or center their text?


  4. xIsabel38

    xIsabel38 Well-Known Member

    First and Foremost
    Disclaimer! If you mess up something... it wasn't my fault. I told you this before you went ahead.
    I am not experienced with coding, programming, etc...
    In fact, I've been learning by reading replies to my questions.

    Ok so I think I found what you are looking for.
    Search for the editor_ui.css

    Code:
    /* External */
    .xenForoSkin .mceExternalToolbar {position:absolute; border:1px solid #CCC; border-bottom:0; display:none;}

    /* Layout */
    .xenForoSkin table.mceLayout {border:0; border-left:1px solid #CCC; border-right:1px solid #CCC}
    .xenForoSkin table.mceLayout tr.mceFirst td {border-top:1px solid #CCC}
    .xenForoSkin table.mceLayout tr.mceLast td {border-bottom:1px solid #CCC}
    .xenForoSkin table.mceToolbar, .xenForoSkin tr.mceFirst .mceToolbar tr td, .xenForoSkin tr.mceLast .mceToolbar tr td {border:0; margin:0; padding:0;}
    .xenForoSkin td.mceToolbar {padding-top:1px; vertical-align:top}
    .xenForoSkin .mceIframeContainer {border-top:1px solid #CCC; border-bottom:1px solid #CCC}
    I believe this controls the grey border around the Editor and is what you need to change. Of course, I could be totally wrong. But the nice thing about xenForo is if you make changes, you can always go back to the default.

    Change all instances of #CCC to whatever color you want.
    There may be more that I missed so look around.

  5. Brax

    Brax Member

    Perfect! Thank you!!

    Now, might you (or anyone!) know how to shut off some of the buttons? I don't want to allow media uploads, images or code blocks.

  6. RobinHood

    RobinHood Well-Known Member

    Pop this in Extra.css to style :)

    Code:
    /* Styles editor outer border */
    #ctrl_message_html_tbl {
        border-left: 1px solid lightgray;
        border-right: 1px solid lightgray;
    }

    .mceIframeContainer.mceFirst.mceLast {
        border-top: 1px solid lightgray !important;
        border-bottom: 1px solid lightgray !important;
    }

    /* Fixes 1px border at top */
    .mceToolbar.mceLeft.mceFirst.mceLast {
        padding-top: 0px;
    }

    .xenForoSkin table.mceLayout tr.mceFirst td {
    border-top: none !important;
    }

    /* Styles main toolbar area background */
    #ctrl_message_html_toolbargroup {
        background: lightgray;
    }

    /* Styles background of 2 rows of icons */
    #ctrl_message_html_toolbar1,
    #ctrl_message_html_toolbar2 {
        background: lightgray;
    }


    /* Styles border around buttons */
    .xenForoSkin .mceButton {
        border: 1px solid transparent !important;
    }


    /* Removes center button */
    #ctrl_message_html_justifycenter {
        display: none;
    }
    Use the right click -> Inspect element feature of chrome to find the ID of the buttons to remove more

    Brax likes this.
  7. RobinHood

    RobinHood Well-Known Member

    Code:
    /* Removes other buttons */
    #ctrl_message_html_xenforo_code,
    #ctrl_message_html_image,
    #ctrl_message_html_xenforo_media{
    display: none;
    }
    Removes other buttons :)

    Brax and Digital Doctor like this.
  8. Brax

    Brax Member

    Awesome!! It's all in the extra.css where I keep a watchful eye on it too. Thanks!!

    RobinHood likes this.
