Resource icon

Sub-Forums Grid

Overview Updates (2) Reviews (3) Discussion
Steve F

Steve F

Well-known member
Steve F submitted a new resource:

Sub-Forums Grid - Sub forum links in cloumns

This template modification displays the sub-forums below the parent node body.

Template node_list_forum

Find this bit of code below and copy it clipboard then delete it.
Code:
<xf:if is="$depth == 2 AND property('nodeListSubDisplay') == 'flat'">
            <xf:macro template="forum_list" name="sub_nodes_flat"
                      arg-children="{$children}"
                      arg-childExtras="{$childExtras}"
                      arg-depth="{{ $depth + 1 }}" />...
Click to expand...

Read more about this resource...

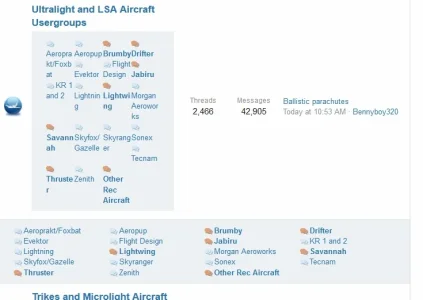

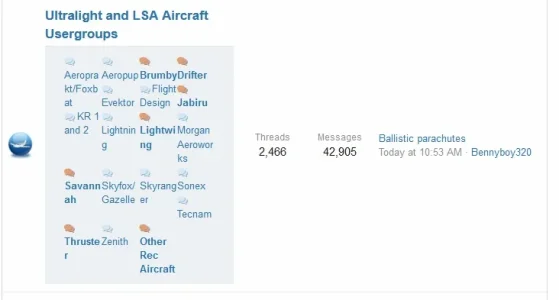

Thanks very much @Steve F however I can't get it to display exactly as your screen shot. I added the extra.less and moved the code block down to line 125 as you instructed but I get:
1.webp 2.webp

Are you sure you edited the correct style for the node_list_forum template? That looks like it is still in the node-body element.

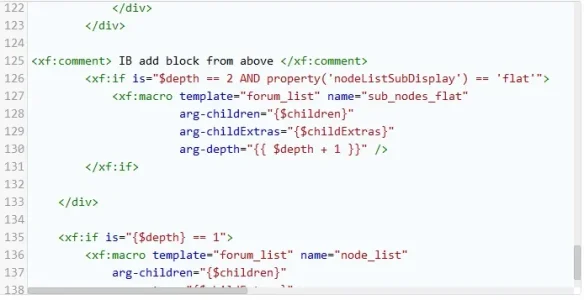

Here is my complete node_list_forum template. As instructed I cut the code our from the template and added it back in above the closing if and div:
Code:
<xf:macro name="depth1" arg-node="!" arg-extras="!" arg-children="!" arg-childExtras="!" arg-depth="1">
    <div class="block">
        <div class="block-container">
            <div class="block-body">
                <xf:macro name="forum"
                    arg-node="{$node}"
                    arg-extras="{$extras}"
                    arg-children="{$children}"
                    arg-childExtras="{$childExtras}"
                    arg-depth="{$depth}" />
            </div>
        </div>
    </div>
</xf:macro>

<xf:macro name="depth2" arg-node="!" arg-extras="!" arg-children="!" arg-childExtras="!" arg-depth="1">
    <xf:macro name="forum"
        arg-node="{$node}"
        arg-extras="{$extras}"
        arg-children="{$children}"
        arg-childExtras="{$childExtras}"
        arg-depth="{$depth}" />
</xf:macro>

<xf:macro name="depthN" arg-node="!" arg-extras="!" arg-children="!" arg-childExtras="!" arg-depth="1">
    <li>
        <a href="{{ link('forums', $node) }}" class="subNodeLink subNodeLink--forum {{ $extras.hasNew ? 'subNodeLink--unread' : '' }}">{$node.title}</a>
        <xf:macro template="forum_list" name="sub_node_list"
            arg-children="{$children}"
            arg-childExtras="{$childExtras}"
            arg-depth="{{ $depth + 1 }}" />
    </li>
</xf:macro>

<xf:macro name="forum"
    arg-node="!"
    arg-extras="!"
    arg-children="!"
    arg-childExtras="!"
    arg-depth="!"
    arg-chooseName=""
    arg-bonusInfo="">

    <div class="node node--id{$node.node_id} node--depth{$depth} node--forum {{ $extras.hasNew ? 'node--unread' : 'node--read' }}">
        <div class="node-body">
            <span class="node-icon" aria-hidden="true"><i></i></span>
            <div class="node-main js-nodeMain">
                <xf:if is="$chooseName">
                    <xf:checkbox standalone="true">
                        <xf:option labelclass="u-pullRight" class="js-chooseItem" name="{$chooseName}[]" value="{$node.node_id}" />
                    </xf:checkbox>
                </xf:if>

                <xf:set var="$descriptionDisplay" value="{{ property('nodeListDescriptionDisplay') }}" />
                <h3 class="node-title">
                    <a href="{{ link('forums', $node) }}" data-xf-init="{{ $descriptionDisplay == 'tooltip' ? 'element-tooltip' : '' }}" data-shortcut="node-description">{$node.title}</a>
                </h3>
                <xf:if is="$descriptionDisplay != 'none' && $node.description">
                    <div class="node-description {{ $descriptionDisplay == 'tooltip' ? 'node-description--tooltip js-nodeDescTooltip' : '' }}">{$node.description|raw}</div>
                </xf:if>

                <div class="node-meta">
                    <xf:if is="!{$extras.privateInfo}">
                        <div class="node-statsMeta">
                            <dl class="pairs pairs--inline">
                                <dt>{{ phrase('threads') }}</dt>
                                <dd>{$extras.discussion_count|number}</dd>
                            </dl>
                            <dl class="pairs pairs--inline">
                                <dt>{{ phrase('messages') }}</dt>
                                <dd>{$extras.message_count|number}</dd>
                            </dl>
                        </div>
                    </xf:if>

                    <xf:if is="$depth == 2 AND property('nodeListSubDisplay') == 'menu'">
                        <xf:macro template="forum_list" name="sub_nodes_menu"
                            arg-children="{$children}"
                            arg-childExtras="{$childExtras}"
                            arg-depth="{{ $depth + 1 }}" />
                    </xf:if>
                </div>

<xf:comment> IB moved block below </xf:comment>

                <xf:if is="$bonusInfo is not empty">
                    <div class="node-bonus">{$bonusInfo}</div>
                </xf:if>
            </div>

            <xf:if is="!{$extras.privateInfo}">
                <div class="node-stats">
                    <dl class="pairs pairs--rows">
                        <dt>{{ phrase('threads') }}</dt>
                        <dd>{$extras.discussion_count|number}</dd>
                    </dl>
                    <dl class="pairs pairs--rows">
                        <dt>{{ phrase('messages') }}</dt>
                        <dd>{$extras.message_count|number}</dd>
                    </dl>
                </div>
            </xf:if>

            <div class="node-extra">
                <xf:if is="{$extras.privateInfo}">
                    <span class="node-extra-placeholder">{{ phrase('private') }}</span>
                <xf:elseif is="{$extras.last_post_date}" />
                    <div class="node-extra-row"><a href="{{ link('posts', {'post_id': $extras.last_post_id}) }}" class="node-extra-title" title="{$extras.last_thread_title}">{$extras.last_thread_title}</a></div>
                    <div class="node-extra-row">
                        <ul class="listInline listInline--bullet">
                            <li><xf:date time="{$extras.last_post_date}" class="node-extra-date" />
                            <xf:if is="$xf.visitor.isIgnoring($extras.last_post_user_id)">
                                <li class="node-extra-user">{{ phrase('ignored_member') }}</li>
                            <xf:else />
                                <li class="node-extra-user"><xf:username user="{{ {'user_id': $extras.last_post_user_id, 'username': $extras.last_post_username} }}" /></li>
                            </xf:if>
                        </ul>
                    </div>
                <xf:else />
                    <span class="node-extra-placeholder">{{ phrase('none') }}</span>
                </xf:if>
            </div>
        </div>

<xf:comment> IB added block from above </xf:comment>
        <xf:if is="$depth == 2 AND property('nodeListSubDisplay') == 'flat'">
            <xf:macro template="forum_list" name="sub_nodes_flat"
                      arg-children="{$children}"
                      arg-childExtras="{$childExtras}"
                      arg-depth="{{ $depth + 1 }}" />
        </xf:if>

    </div>

    <xf:if is="{$depth} == 1">
        <xf:macro template="forum_list" name="node_list"
            arg-children="{$children}"
            arg-extras="{$childExtras}"
            arg-depth="{{ $depth + 1 }}" />
    </xf:if>
</xf:macro>

I see what the issue is now, those nodes are categories so we'll need to add an edit for that, give me moment.

Steve F updated Sub-Forums Grid with a new update entry:

Add support for node categories

Template: node_list_category

Find:
Code:
    </div>
</xf:macro>

<xf:macro name="depthN" arg-node="!" arg-extras="!" arg-children="!" arg-childExtras="!" arg-depth="1">



Add above:
Code:
        <xf:if is="$depth == 2 AND property('nodeListSubDisplay') == 'flat'">
            <xf:macro template="forum_list" name="sub_nodes_flat"
                      arg-children="{$children}"
                      arg-childExtras="{$childExtras}"
                      arg-depth="{{ $depth + 1 }}"...
Click to expand...

Read the rest of this update entry...

Steve, unfortunately that just doubles up the sub forums. I even removed the extra edits in the node_list_forum template to check if that was conflicting but there wasn't any impact:

You can see it live on my site in my sig

I just installed Xenforo V.2.1.1 went to Appearance -> Template modification -> node_list_forum to follow the steps in the OP.

Now I get this one: Only a limited number of fields in this item may be edited.

Any idea how to edit this thing?

@Steve F Thanks for this nice enhancement!
This doesn't seem to be compatible with XF2.2 as node_list_category template is different.

Is there a way to only affect forum subnodes and not subnodes in other content types? Currently its also affecting subnodes in @pegasus Vaultwiki, As Vaultwiki has a sidebar it gets requires a different number of columns in the grid.
