Fixed Prefix group within <xf:dependent> no longer aligns the check-all checkbox

[DragonByte Tech]

Affected version

2.1.0 Beta 2

Consider the following HTML:

<xf:checkboxrow label="{{ phrase('dbtech_ecommerce_tickets_thread_criteria_thread') }}">
    <!-- other options here -->
    <xf:if is="$data.prefixesGrouped is not empty">
        <xf:option name="thread_criteria[prefix][rule]" value="prefix" selected="{$criteria.prefix}"
                   label="{{ phrase('dbtech_ecommerce_tickets_thread_criteria_thread_has_prefix:') }}">

            <xf:dependent>
                <xf:checkbox name="thread_criteria[prefix][data][prefix_ids]" value="{$criteria.prefix.prefix_ids}" listclass="prefix">

                    <xf:foreach loop="$data.prefixGroups" key="$prefixGroupId" value="$prefixGroup" if="{$data.prefixesGrouped.{$prefixGroupId}}">

                        <xf:optgroup check-all="true" listclass="listColumns"
                                     label="{{ $prefixGroupId ? $prefixGroup.title : phrase('ungrouped') }}">

                            <xf:foreach loop="{$data.prefixesGrouped.{$prefixGroupId}}" key="$prefixId" value="$prefix">
                                <xf:option value="{$prefixId}">
                                    <xf:label><span class="label {$prefix.css_class}">{$prefix.title}</span></xf:label>
                                </xf:option>
                            </xf:foreach>
                        </xf:optgroup>
                    </xf:foreach>
                </xf:checkbox>
            </xf:dependent>
        </xf:option>

    </xf:if>

    <!-- other options here -->
</checkboxrow>

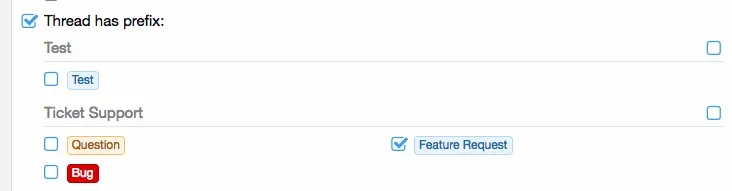

This is the result in XF 2.0:

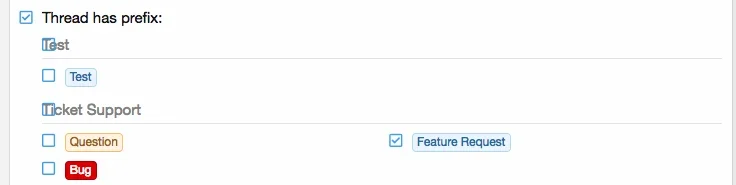

This is the result in XF 2.1:



The final HTML generated by the above code has gone from this in XF2:

<li class="inputChoices-option"><ul class="inputChoices">
                <li class="inputChoices-group ">
                    <div class="inputChoices-heading"><label class="iconic iconic--checkbox iconic--labelled inputChoices-heading-checkAll">
                        <input type="checkbox" data-xf-init="check-all" data-container="< .inputChoices-group"><i aria-hidden="true"></i>Test</label></div>
                    <ul class="inputChoices listColumns"><li class="inputChoices-choice"><label class="iconic iconic--checkbox iconic--labelled"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="1"><i aria-hidden="true"></i><span class="label label label--primary">Test</span></label></li>
</ul>
                </li><li class="inputChoices-group ">
                    <div class="inputChoices-heading"><label class="iconic iconic--checkbox iconic--labelled inputChoices-heading-checkAll">
                        <input type="checkbox" data-xf-init="check-all" data-container="< .inputChoices-group"><i aria-hidden="true"></i>Ticket Support</label></div>
                    <ul class="inputChoices listColumns"><li class="inputChoices-choice"><label class="iconic iconic--checkbox iconic--labelled"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="2"><i aria-hidden="true"></i><span class="label label label--accent">Question</span></label></li>
<li class="inputChoices-choice"><label class="iconic iconic--checkbox iconic--labelled"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="3"><i aria-hidden="true"></i><span class="label label label--red">Bug</span></label></li>
<li class="inputChoices-choice"><label class="iconic iconic--checkbox iconic--labelled"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="4" checked="checked"><i aria-hidden="true"></i><span class="label label label--primary">Feature Request</span></label></li>
</ul>
                </li>
            </ul></li>

To this in XF 2.1:

<li class="inputChoices-option"><ul class="inputChoices">
                <li class="inputChoices-group ">
                    <div class="inputChoices-heading inputChoices-heading--checkAll"><label class="iconic">
                        <input type="checkbox" data-xf-init="check-all" data-container="< .inputChoices-group"><i aria-hidden="true"></i>Test</label></div>
                    <ul class="inputChoices listColumns"><li class="inputChoices-choice"><label class="iconic"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="1"><i aria-hidden="true"></i><span class="iconic-label"><span class="label label label--primary">Test</span></span></label></li>
</ul>
                </li><li class="inputChoices-group ">
                    <div class="inputChoices-heading inputChoices-heading--checkAll"><label class="iconic">
                        <input type="checkbox" data-xf-init="check-all" data-container="< .inputChoices-group"><i aria-hidden="true"></i>Ticket Support</label></div>
                    <ul class="inputChoices listColumns"><li class="inputChoices-choice"><label class="iconic"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="2"><i aria-hidden="true"></i><span class="iconic-label"><span class="label label label--accent">Question</span></span></label></li>
<li class="inputChoices-choice"><label class="iconic"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="3"><i aria-hidden="true"></i><span class="iconic-label"><span class="label label label--red">Bug</span></span></label></li>
<li class="inputChoices-choice"><label class="iconic"><input type="checkbox" name="thread_criteria[prefix][data][prefix_ids][]" value="4" checked="checked"><i aria-hidden="true"></i><span class="iconic-label"><span class="label label label--primary">Feature Request</span></span></label></li>
</ul>
                </li>
            </ul></li>

This causes the final built CSS class of .inputChoices-heading.inputChoices-heading--checkAll .iconic > input + i to not trigger, thus causing the issue.


Fillip



[Mike]

I believe there have been subsequent changes that have resolved this issue, as I'm no longer able to reproduce it, based on manipulating the prefix list in forum_edit to be contained within a checkbox option. I think at the time this was reported, the basis optgroup check all situation was broken.

If you can still reproduce this, let us know.



[DragonByte Tech]

Aye seems to work in Beta 5
