nginx XSendfile for handling attachments

[D.O.A.]

We've got a lot (50,000+) of attachments on our forum and Xsendfile/X-accel was recommended. Can any proficient nginx users here verify the below is working as intended? We're trying to optimize attachment handling without breaking view counters or removing permissions.

http://wiki.nginx.org/X-accel
I have tested this in /XenForo/ViewPublic/Attachment/View.php

return new XenForo_FileOutput($this->_params['attachmentFile']);

replaced with

$this->_response->setHeader('X-Accel-Redirect', str_replace(XenForo_Application::getInstance()->getRootDir(),'', $this->_params['attachmentFile']));
return '';

So in theory nginx is doing all the work now?
I'm wondering would this also require a defined internal location aka into /internal_data folder etc on the nginx config side.



[D.O.A.]

still looking into this, it seems vb and wordpress are onto it.
http://www.vbulletin.org/forum/showthread.php?t=207566
http://rtcamp.com/tutorials/nginx-map-wordpress-multisite-static-files-handling/



[silence]

Hmmm I threw this into my site and since I'm mostly using attachment thumbnails, I'm not noticing an improvement.



[D.O.A.]

Configure your server stanza to support it also, it's taking the load of php for me



[silence]

Configure your server stanza to support it also, it's taking the load of php for me

What do you mean 'server stanza'?
Would you be so generous as to post any snippits that could be of use to other users?



[HittingSmoke]

We've got a lot (50,000+) of attachments on our forum and Xsendfile/X-accel was recommended. Can any proficient nginx users here verify the below is working as intended? We're trying to optimize attachment handling without breaking view counters or removing permissions.

http://wiki.nginx.org/X-accel
I have tested this in /XenForo/ViewPublic/Attachment/View.php

return new XenForo_FileOutput($this->_params['attachmentFile']);

View attachment 42492

replaced with

$this->_response->setHeader('X-Accel-Redirect', str_replace(XenForo_Application::getInstance()->getRootDir(),'', $this->_params['attachmentFile']));
return '';

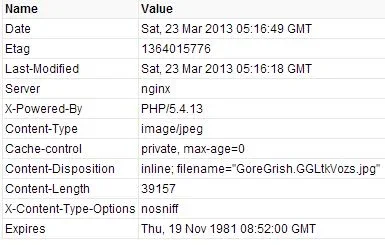

View attachment 42493

So in theory nginx is doing all the work now?
I'm wondering would this also require a defined internal location aka into /internal_data folder etc on the nginx config side.

I'm very interested in seeing how this turns out. Attachment optimization is something that's been bugging me. I don't want to lose the ability to apply permissions to attachments but serving them from PHP is never ideal.
