Nginx Fastcgi_cache configuration for Xenforo Board

[rdn]

I got it working 99% as far as I tested
Big credits to @hungphutho and @eva2000 of centminmod community

My config:
nginx.conf
For others, should be above server{ block.
For centminmod users: above include /usr/local/nginx/conf/conf.d/*.conf;

### fastcgi_cache
###
fastcgi_cache_path /var/cache/nginx levels=1:2 keys_zone=phcornercache:500m inactive=1d max_size=2g;
fastcgi_cache_key "$scheme$request_method$host$request_uri";
fastcgi_cache_lock on;
fastcgi_cache_use_stale error timeout invalid_header updating http_500;
fastcgi_ignore_headers Cache-Control Expires Set-Cookie;
###
### fastcgi_cache end

php.conf above }

### fastcgi_cache
###
fastcgi_cache phcornercache;
fastcgi_cache_bypass $no_cache;
fastcgi_no_cache $no_cache;
fastcgi_cache_valid  200 302 15m;
fastcgi_cache_valid  301 1d;
fastcgi_cache_valid  404 5m;
fastcgi_cache_valid  any 15m;
add_header X-Cached $upstream_cache_status;
###
### fastcgi_cache end

Domain.conf above location / {

### fastCgi cache
    set $no_cache 0;

    # POST requests should always go to PHP
    if ($request_method = POST) {
        set $no_cache 1;
    }

    # Don't use the cache for logged in users
    if ($http_cookie ~* "xf_session_admin|xf_user|xf_user_admin") {
        set $no_cache 1;
    }

    # Don't cache uris containing the following segments
    if ($request_uri ~* "(admin.php|/account/|/conversations/|/misc/|/online/|/login/|/register/|/login|/register|/library/|/internal_data/)") {
        set $no_cache 1;
    }
    ### fastCgi end



[Sheratan]

What's the difference between this and opcache/xcache?



[rdn]

Zend opcache and Xcache is only for PHP Caching.



[Sheratan]

Zend opcache and Xcache is only for PHP Caching.

So this is for html and css?



[rdn]

@eva2000 explain it here: https://theadminzone.com/threads/ng...htspeed-what-are-you-using.88599/#post-607153

varnish cache and xcache do different things, proper comparison would be

in terms of php opcode caching

apache* + xcache (php opcode cache)
vs
apache* + apc (php opcode cache)
vs
apache* + eaccelerator (php opcode cache)

* switch out apache for nginx or litespeed web server


in terms of web acceleration

apache + varnish
vs
nginx + varnish
vs
litespeed web server + varnish
vs
nginx + nginx fastcgi_cache
vs
litespeed web server + litespeed cache

But no i haven't tried nginx + varnish cache - would be the most time consuming combination of them all as it's quite alot of admin work to do with nginx configuration/htaccess/rewrite customisation + varnish vcl rule sets each script you load on your server.



[rdn]

More info:
https://www.digitalocean.com/community/tutorials/how-to-setup-fastcgi-caching-with-nginx-on-your-vps
https://rtcamp.com/wordpress-nginx/tutorials/single-site/fastcgi-cache-with-purging/



[Floren]

@RoldanLT, you just made it possible to display a bunch of user conversations and other private info to everyone, in your forums.
I already told you what to do on AXIVO forums. Please make sure you don't spread this information without proper testing. I logged out of Centminmod forums, just to be safe.



[rdn]

you just made it possible to display a bunch of user conversations and other private info to everyone, in your forums.

What makes you say that?
Conversations page are already Bypass with this:

 # Don't use the cache for logged in users
    if ($http_cookie ~* "xf_session_admin|xf_user|xf_user_admin") {
        set $no_cache 1;
    }



[Floren]

That's not true.



[rdn]

Ok, Just changed this.

 # Don't cache uris containing the following segments
    if ($request_uri ~* "(/admin.php|/account/|/conversations/|/misc/|/online/|/login/|/register/|/login|/register|/library/|/internal_data/)") {
        set $no_cache 1;
    }



[Floren]

You're adding things blindly, without trying to understand where the actual problem is. Have a look at XenForo login to understand where is your problem.



[rdn]

Can't edit 1st post

Now change to:

### fastCgi cache
    set $no_cache 0;

    # Filter out POST and HEAD requests for caching!
    if ($request_method ~ ^(HEAD|POST)$) {
    set $noCache 1;
    }

    # Don't use the cache for logged in users
    if ($http_cookie ~* "xf_session_admin|xf_user|xf_user_admin|xf_style_id=69|xf_style_id=70|xf_style_id=71") {
        set $no_cache 1;
    }

    # Don't cache uris containing the following segments
    if ($request_uri ~* "(admin.php|/account/|/conversations/|/misc/|/online/|/login/|/register/|/login|/register|/library/|/internal_data/)") {
        set $no_cache 1;
    }
    ### fastCgi end



[MattW]

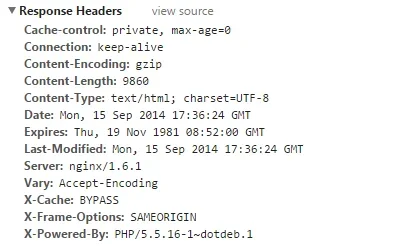

I've been testing this on my debian server. Setting the values that @RoldanLT has set above when logged in doesn't send anything to the nginx cache, and setting the extra header shows BYPASS on the cache



You might also want to add /logout/ to the $request_uri



[rdn]

Added /logout/ uri (But looks like already filtered by cookie, added just to be sure), Thanks @MattW



[MattW]

It was triggering errors then displaying 403 access denied on my test site when I logged out until I added it to the uri



[rdn]

It was triggering errors then displaying 403 access denied on my test site when I logged out until I added it to the uri

Aw
Thanks, didn't tried to logout so I didn't encounter that issue.

Now my problem is, a user can't login unless "Stay logged in" is check



[rdn]

Added "/lost-password/" filter uri.



[Floren]

Now my problem is, a user can't login unless "Stay logged in" is check

Now you finally understand what I mean by checking the XenForo login.
And adding those exclusions you are performing with crazy IF's are useless anyways.



[rdn]

Now you finally understand what I mean by checking the XenForo login.
And adding those exclusions you are performing with crazy IF's are useless anyways.

Perhaps you can advice



[rdn]

For now, I modified template helper_login_form and login_bar_form.
Replace:

<label class="rememberPassword"><input type="checkbox" name="remember" value="1" id="ctrl_pageLogin_remember" tabindex="3" /> {xen:phrase stay_logged_in}</label>

With this:

<input type="hidden" name="remember" checked="checked" value="1" />

Solved
