[DigitalPoint] App for Cloudflare®

[DigitalPoint] App for Cloudflare® 1.9.1.1

No permission to download
Overview FAQ Updates (63) Reviews (22) History Discussion
digitalpoint said:
What version of PHP? I've not been able to replicate at, and honestly the code looks pretty simple... check if the parent method exists before it tries to call it (but for whatever reason your setup is saying the parent class exists when it doesn't).
Click to expand...


PHP Version 8.4.5​


Hi @digitalpoint

Is it possible to enable a specific "firewall rule" under /admin.php?cloudflare/firewall via CLI?
Using cmd.php, I want to auto-enable a specific firewall when I'm under DDOS attack via Linux cron or systemd timer.

Thanks for the much-needed addon for Cloudflare users.

rdn said:
Hi @digitalpoint

Is it possible to enable a specific "firewall rule" under /admin.php?cloudflare/firewall via CLI?
Using cmd.php, I want to auto-enable a specific firewall when I'm under DDOS attack via Linux cron or systemd timer.

Thanks for the much-needed addon for Cloudflare users.
Click to expand...
if the remote server is overloaded then it might be best to just enable auto-ddos mitigation via the CF website directly.

MentaL said:
if the remote server is overloaded then it might be best to just enable auto-ddos mitigation via the CF website directly.
Click to expand...
Yes, that is possible only if I'm home or not sleeping.
But sometimes attacks happen when I'm offline.

While I’m not opposed to CLI functionality in principle, I don’t think a mechanism to enable DDoS protection from the machine being attacked is really the best idea. If it’s a real attack, cron isn’t going to function even, so… your better option is an external cron that runs on a Cloudflare Worker or something so it’s decoupled from the server being attacked.

While using Cloudflare, the attacker can only launch Layer 7/application attacks.
The server mostly is functional even with large attacks; it's PHP-FPM/MariaDB that would most likely be kaput or start to respond so slowly.

Other Linux services still work fine, including cron.
But if it can be detected early on, like detecting server load or port 443 connections reaching a certain unexpected amount, it can be prevented from overloading the server.

digitalpoint said:
your better option is an external cron that runs on a Cloudflare Worker or something so it’s decoupled from the server being attacked.
Click to expand...
This is a much better way, relying on an external server, but I'm not sure yet how to implement this :).

Depends on how strong the attack is. I’ve dealt with attacks strong enough that the kernel itself would crash and the operating system just ceased to function (the OS could launch any new processes, including cron). If your server’s cron still functions, it’s a weak sauce attack. 😂

digitalpoint said:
Depends on how strong the attack is. I’ve dealt with attacks strong enough that the kernel itself would crash and the operating system just ceased to function (the OS could launch any new processes, including cron). If your server’s cron still functions, it’s a weak sauce attack. 😂
Click to expand...

all you need is to overload bandwidth and hit a good ol' bottleneck. Unless you got some sort of KVM access somewhere, that's enough to ruin a lot of fun.

Are you actually getting attacks that Cloudflare isn’t automatically mitigating? I’m curious what sort of firewall rule you are needing to enable that is doing a better job of DDoS protection than Cloudflare is doing. Would is make sense to just have that rules enabled all the time?

digitalpoint said:
Are you actually getting attacks that Cloudflare isn’t automatically mitigating?
Click to expand...
Some of the HTTP floods aren't detected by Cloudflare and hit directly my origin server (this happens a lot).
Sometimes Cloudflare DDoS protection detects only after a few minutes, bringing the server down.

Sometimes the attack is not considered a threat by Cloudflare because they are using 300k+ unique IPs at once but only 5-10 connections per IP every few seconds but still bringing my server down.

digitalpoint said:
I’m curious what sort of firewall rule you are needing to enable that is doing a better job of DDoS protection than Cloudflare is doing.
Click to expand...
It's similar to the "I'm under attack mode," but I apologize; I won't post specific details here because my forum competitors are also lurkers on this forum.

digitalpoint said:
Cloudflare is doing
Click to expand...
Based on experience, Cloudflare DDoS protection isn't tailored much for PHP web apps.
The attackers know which specific Xenforo pages are heavy on the PHP/MariaDB side and vulnerable to HTTPS flood attacks.

digitalpoint said:
Would is make sense to just have that rules enabled all the time?
Click to expand...
But it could block some SEO bots and also interfere with legitimate users.

digitalpoint said:
Sort of... XenForo uses an abstract filesystem for data and internal_data. Data is intended to be public (things like avatars and attachment previews are direct requests for the public URL. Things in internal_data are intended to be private (not publicly accessible... things like full attachments) so that the application can do permission checks and choose to serve (or not) the content based on those permissions. All of that is generally how XenForo works (with or without R2).

By default, XenForo uses a local file system adapter for the abstracted file system (it never reads or writes directly to the folders, rather it reads and writes to the local filesystem adapter for the abstracted file system). That's why you can just plug in alternate filesystems fairly easily.

Hopefully that makes it a little more clear how the underpinnings of XenForo work. And to answer your question about where a private (internal_data) file is stored when it's read from an abstracted file system, it's not stored anywhere other than in server memory for that single request. There is no cache or temporary image created... if you were just caching everything locally, it would more or less defeat the purpose of offloading to R2.

As far as publicly accessible areas (things in the data directory), they become publicly accessible on a sub-domain so that R2/Cloudflare can serve them directly.

For example, the avatar for a user on iolabs.io (if you were using the default local filesystem adapter) would be:


With R2 it's this:


data.iolabs.io isn't on my server, it's simply handled by Cloudflare directly.
Click to expand...

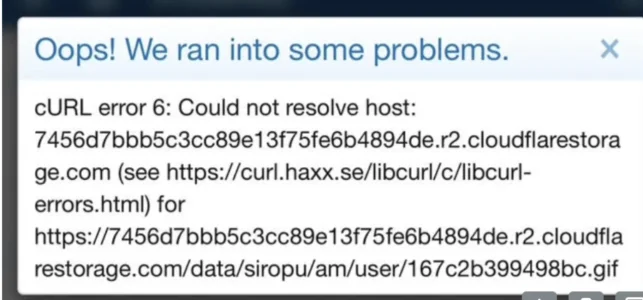

@digitalpoint when I try to edit a banner ad from Siropu Ads Manager I get the following error:

Siropu confirmed he is using the copyFileToAbstractedPath method to store the attachments. Could that be the reason why I get this R2 error?

rdn said:
Some of the HTTP floods aren't detected by Cloudflare and hit directly my origin server (this happens a lot).
Sometimes Cloudflare DDoS protection detects only after a few minutes, bringing the server down.

Sometimes the attack is not considered a threat by Cloudflare because they are using 300k+ unique IPs at once but only 5-10 connections per IP every few seconds but still bringing my server down.


It's similar to the "I'm under attack mode," but I apologize; I won't post specific details here because my forum competitors are also lurkers on this forum.


Based on experience, Cloudflare DDoS protection isn't tailored much for PHP web apps.
The attackers know which specific Xenforo pages are heavy on the PHP/MariaDB side and vulnerable to HTTPS flood attacks.


But it could block some SEO bots and also interfere with legitimate users.
Click to expand...

If your serving static cached pages to guests then the impact should be minimal. What if they are attacking the source ip, bypassing CF altogether?

Hi,

I have an add-on of mine which uses icons that are located in data/xfa/customusernameicons/icons.

In my code I have the following:
PHP:
            if (\XF::fs()->has('data://xfa/customusernameicons/icons'))
            {
                $iconsDataRaw = \XF::fs()->listContents('data://xfa/customusernameicons/icons', false);

When using default XenForo setup, the listContents output is fine.

However, for that particular user, he is using a CDN for data and the output of the listContents is empty.

I narrowed down and the listContents output is only fine if I set the second parameter to true which is from my understanding supposed to tell the function to go through the directory structure (e.g. if it had subfolders) which is not what I would want so I believe something is incorrect here, unless I misunderstood something.

Clément

XFA said:
Hi,

I have an add-on of mine which uses icons that are located in data/xfa/customusernameicons/icons.

In my code I have the following:
PHP:
            if (\XF::fs()->has('data://xfa/customusernameicons/icons'))
            {
                $iconsDataRaw = \XF::fs()->listContents('data://xfa/customusernameicons/icons', false);

When using default XenForo setup, the listContents output is fine.

However, for that particular user, he is using a CDN for data and the output of the listContents is empty.

I narrowed down and the listContents output is only fine if I set the second parameter to true which is from my understanding supposed to tell the function to go through the directory structure (e.g. if it had subfolders) which is not what I would want so I believe something is incorrect here, unless I misunderstood something.

Clément
Click to expand...
R2 and other CDNs don’t have the ability to list a “directory”.

Ok good to know, at least as this directory should not contain a directory I'll work it that way with the recursivity.
Thank you.
