Nested .checkboxColumns radio button slightly clipped (WebKit browsers)

Discussion in 'XenForo Development Discussions' started by Chris D, Feb 23, 2014.

  1. Chris D

    Chris D XenForo Developer Staff Member

    Here's the problem:

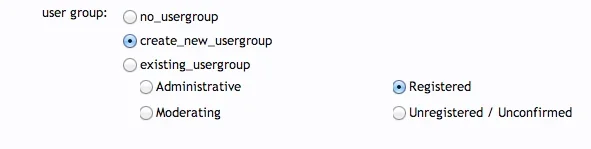

    Notice that the user group radio buttons are slightly clipped. This only happens when that is nested inside another <ul> tag.

    Here's the HTML:

    HTML:
            <dl class="ctrlUnit">
                <dt><label>{xen:phrase user_group}:</label></dt>
                <dd>
                    <ul>
                        <li>
                            <label>
                                <input type="radio" name="user_group" value="" />
                                {xen:phrase no_user_group}
                            </label>
                        </li>
                        <li>
                            <label>
                                <input type="radio" name="user_group" value="create" />
                                {xen:phrase create_new_user_group}
                            </label>
                        </li>
                        <li>
                            <label>
                                <input type="radio" name="user_group" value="existing" />
                                {xen:phrase existing_user_group}
                            </label>
                            <ul class="checkboxColumns">
                                <xen:foreach loop="$userGroups" key="$userGroupId" value="$userGroup">
                                    <li>
                                        <label for="ctrl_user_group_ids_{$userGroupId}_{$type}">
                                            <input type="radio" name="user_group_id_{$type}" value="{$userGroupId}" id="ctrl_user_group_ids_{$userGroupId}_{$type}" />
                                            {$userGroup.title}
                                        </label>
                                    </li>
                                </xen:foreach>
                            </ul>
                        </li>
                    </ul>
                </dd>
            </dl>

    There's no custom CSS here so this should be easy enough to reproduce this (just replace the foreach loop with any li elements).

    Seems to only be an issue in Safari and Chrome which leads me to believe it is a webkit specific issue. Fine in Firefox.

  2. Chris D

    Chris D XenForo Developer Staff Member

    I found the solution :)

    The list items that are a child of .checkboxColumns require 1px of left padding to offset something else that seemingly only effects webkit browsers. It seems to work in all browsers so I will just go with that.

    Digital Doctor and Brogan like this.
