Make data & internal_data filesystem adaptor more granular

[digitalpoint]

The problem:

You want to store attachments and avatars in a non-local filesystem.

The solution:

There are currently 3 locations you can override filesystem adaptors: data, internal-data and code-cache. So to solve "the problem" you can override data and internal-data to use something like AWS S3. So far, so good...

The issue:

Overwriting the data and internal-data filesystem is (for the most part) an "all or nothing" thing. So when I really just wanted to store internal_data/attachments and data/avatars in the cloud, now I'm forced to also store a whole slew of other things in the cloud:

Where	What
data/attachments	Attachment thumbnails
data/audio	User uploaded audio
data/imported_reactions	Reactions imported from other forum software
data/profile_banners	User uploaded banners
data/styles	Styles imported from an archive (why is this in data rather than internal_data?)
data/video	User uploaded video
internal_data/addon_batch	Data only used when installing add-ons from an archive
internal_data/file_check	Info about nightly file checks
internal_data/image_cache	Images from image proxy
internal_data/imported_xml	Imported smiles
internal_data/keys	Email DKIM key
internal_data/oembed_cache	Media embeds
internal_data/sitemaps	Sitemaps for search engines

Examples of why you wouldn't want to store some of these items in the cloud:

• Making cloud API calls on the backend every time a user views a reaction on a post (or is given an opportunity to use that reaction) just to get the reaction image. Not efficient.
• Reading and writing what ultimately is temporary data to the cloud when you install an add-on. Not efficient.
• Reading proxied images via cloud API calls every time someone views a proxied image (at least partially) defeats the purpose of the image proxy.
• Making cloud API calls to read what is a singular DKIM key every time an email is sent? This one is SO bad. We've now slowed down outgoing mails and added an actual cost to send emails (cloud API calls aren't terribly expensive, but if you are sending a ton of emails from XenForo, which large sites will be doing, 10,000,000 individually cheap emails is a real cost). Real-world example: Let's say the API call only takes 1/4 of a second to fully complete. You send a mass email to 10,000 users. Doing the same API call once for each email (to get the same key each time), and you just added 42 minutes of extra time to send those 10,000 emails on top of paying for each API call.

There's already a suggestion thread specifically related to the DKIM keys, but I think it would be better to have that simply be part of what could be a more granular system:

Lack of interest - DKIM: Change location of key material

Currently, the private key is stored unarmored in internal-data://keys, I am not sure if I'd be too happy to have a private key stored in an (unstrusted) public cloud object storage. Furthermore, the key could be accessed pretty frequently (on busy forums) - in which case it would always be...

xenforo.com

I don't think it would be terribly hard to do and also maintain backward compatibility (see my post in the above thread).



[Kirby]

Where	What
data/imported_reactions	Reactions imported from other forum software

Those can easily be moved after import (for example to styles), as this is a one-time effoert I think this isn't too bad.

Where	What
data/styles	Styles imported from an archive (why is this in data rather than internal_data?)

This directory contains style assets (Images, Fonts,, etc.) - those resources must be in data as they are directly accessed by browsers and internal_data isn't directly accessible.
Saving those resources in data rather than styles is purely done for convenience reasons; when importing in development mode assets will go to styles.

Making cloud API calls on the backend every time a user views a reaction on a post (or is given an opportunity to use that reaction) just to get the reaction image. Not efficient.

I am not sure if I understand this - which API calls are you talking about here?

Reading and writing what ultimately is temporary data to the cloud when you install an add-on. Not efficient.

Agreed, though I don't think is is a sigificant issue.

Reading proxied images via cloud API calls every time someone views a proxied image (at least partially) defeats the purpose of the image proxy.

The main purpose of the image proxy is to service images that otherwise couldn't be served (because they are on HTTP while the forum is running HTTPS).
It's also more or less required for GDPR compliance.

Making cloud API calls to read what is a singular DKIM key every time an email is sent? This one is SO bad.

Absolutely, that's why I made a specific bug report for this - even if the key is stored in internal_data it shoud'nt be read for every single mail (that's insane!) but once per script call.

I don't think it would be terribly hard to do and also maintain backward compatibility (see my post in the above thread).

Unless I am missing smth. or you suggest to implement an OverlayFS-type Flysystem Adapter I don't think it is possible to implement this suggestion without breaking backwards compatibility as every single VFS path used in XenForo and Add-ons would have to be changed, eg. data://attachments -> attachments://



[digitalpoint]

Those can easily be moved after import (for example to styles), as this is a one-time effoert I think this isn't too bad.

Yep, but it's not really ideal.

This directory contains style assets (Images, Fonts,, etc.) - those resources must be in data as they are directly accessed by browsers and internal_data isn't directly accessible.
Saving those resources in data rather than styles is purely don for convenience reasons; when importing in development mode assets will go to styles.

Ah... that makes sense, I've never installed a style on any version of XenForo ever, so had no clue.

I am not sure if I understand this - which API calls are you talking about here?

Might be me not understanding what's stored in there. I assumed it was images from imported reactions. If it's just temporary and nothing stays there, it's the same as the first point. Workable, but not ideal.

Agreed, though I don't think is is a sigificant issue.

Yep, it can also be worked around, but it's also not ideal.

The main purpose of the image proxy is to service images that otherwise couldn't be served (because they are on HTTP while the forum is running HTTPS).
It's also more or less required for GDPR compliance.

Right, that's why I said it "partially" defeats the purpose. A purpose some (including myself) use it for is to speed up the site and not being reliant on third-party domains. But now we are back to fetching the image from a remote server just to serve it from cache. Caching of things on geographically remote servers kind of defeats the purpose of a cache. Image if your browser cache lived on a server 1,000 miles from your computer.

Absolutely, that's why I made a specific bug report for this - even if the key is stored in internal_data it shoud'nt be read for every single mail (that's insane!) but once per script call.

Right... I understand it extensively. I was the one that made the original suggestion for DKIM support, and as part of that suggestion, my implementation was to add the DKIM key to options, because it's write once, read a billion times type of thing. The file system isn't the right place for it. I didn't suggest it go in options because options was the only place I could think of to store it. haha

Implemented - Signing of outgoing emails with DKIM

I ran into an issue where emails would have a 100% fail rate for certain domains (mac.com and icloud.com for example). Long story short is it was because I was not using DKIM to sign outbound emails. As soon as I went through the hoops of doing DKIM signing of emails, they instantly started to...

xenforo.com

Unless I am missing smth. or you suggest to implement an OverlayFS-type Flysystem Adapter I don't think it is possible to implement this suggestion without breaking backwards compatibility as every single VFS path used in XenForo and Add-ons would have to be changed, eg. data://attachments -> attachments://

Nah, it can be done without changing the VFS paths. In fact, I had an idea of how to do it simply by extending a single XenForo method. I haven't had time to build it yet, so I can't say for certain if there might be something I'm not thinking of that wouldn't work. But we'll see...



[Kirby]

Might be me not understanding what's stored in there. I assumed it was images from imported reactions.

Yes, those are images for imported reactions and they are not temporary, but as said before - I don't get what API calls you are talking about.

I didn't suggest it go in options because options was the only place I could think of to store it. haha

I probably wouldn't keep DKIM key material in options (as it's not really an option), quite a bit more data than average options and not needed in many cases (for example for guest views) - I probably would have put it into the registry.

Nah, it can be done without changing the VFS paths.

Sounds interesting



[digitalpoint]

Yes, those are images for imported reactions and they are not temporary, but as said before - but as said before, I don't get what API calls you are talking about.

Okay, say you had images in there... and data is using AWS S3 as your filesystem. In that case, whenever an image in there needs to be presented to the user, we need to be reading it via AWS API (generically "cloud api calls").

I probably wouldn't keep DKIM key material in options (as it's not really an option), quite a bit more data than average options and not needed in many cases (for example for guest views) - I probably would have put it into the registry.

Other "keys" are stored in options (for example for captcha authentication) as well as not-human-usable credentials (like Google OAuth credentials for email transport). And then on the flip side, there are some things that I consider actual options that are stored in the registry (avatarSizeMap & inlineImageTypes come to mind, but there are others).

But yes... registry works too. Whatever that is not the file system and can have an in-memory cache is fine by me so either would work.



[Kirby]

In that case, whenever an image in there needs to be presented to the user, we need to be reading it via AWS API (generically "cloud api calls").

Erm ... no?

Files stored in data (like avatars, attachment thumbnails, etc.) are usually directly accessed by the browser to present them to the user, no API calls are involved there.



[digitalpoint]

Erm ... no?

Files stored in data (like avatars, attachment thumbnails, etc.) are usually directly accessed by the browser to present them to the user, no API calls are involved there.

Usually, but not always. Say you used something like Cloudflare R2 (a drop-in replacement for AWS S3). You don't have to use alternate sub-domains for serving that content (say for example you didn't want people knowing you were using AWS for whatever reason, having those images prepended with something like https://s3.eu-west-2.amazonaws.com might not be an option). There may also be GDPR ramifications in some case where fetching images in that way is disclosing things like IP and user agent of your end-users to a third party (AWS). What you can do in that case is use Cloudflare Workers where you are intercepting the HTTP request to your domain, and doing the backend API calls at that point and serving them directly without an alternate sub-domain. Again, it's not the way everyone does it, but some do.

Use R2 from Workers · Cloudflare R2 docs

Store large amounts of unstructured data without egress fees.

developers.cloudflare.com

Doing it with something like AWS sub-domains, is effectively doing the same thing on the backend, just without YOU needing to make the API calls, rather AWS doing it for you seamlessly (but ultimately a API calls are being made to read your bucket/object).



[digitalpoint]

I tend to think more in how things work on the backend. Replace where I said, "cloud API calls" with "cloud requests". My whole point was based around imported_reactions (and everything else) being forced into S3 if someone really just wanted to have avatars in S3. Cloud API calls or cloud requests (which cost money for each one) are synonymous for what I was (poorly) trying to convey.

Ultimately, my point is that if each directory within data and internal_data could be setup as a site wanted/needed (maybe it's as simple as using the same S3 service, but each folder being in a different bucket or something if they needed it that way for example).

The current "all or nothing" way of doing it isn't ideal imo, that's all.



[Paul B]

I split off the posts related to the add-on development to a new thread here: https://xenforo.com/community/threads/granular-filesystem-adaptor.210906/



[digitalpoint]

If anyone wants to see the underlying code of how it can be done, I made a tiny addon that allows you to store just the internal_data/keys folder in it's own file system (I also made a Data Registry Flysystem adapter for that purpose). So you can store just the DKIM in XenForo's registry (without moving all of internal_data there).

[DigitalPoint] FileSystem

Allows you to optionally use a Local Cluster filesystem adapter for code-cache:// (allows you to keep file system changes in sync with different web servers... things like template/phrase changes as well as add-on development). Could also be...

xenforo.com



[digitalpoint]

In case this suggestion gets future consideration, it can be done in a completely backwards-compatible/non-breaking way. I rolled it out in my Cloudflare addon back in January, and there have been no issues (it was done in the addon so we can use R2 for the abstracted filesystem, but only in certain folders [for example internal_data/attachments], while leaving the rest of internal_data on the local filesystem).



[TPerry]

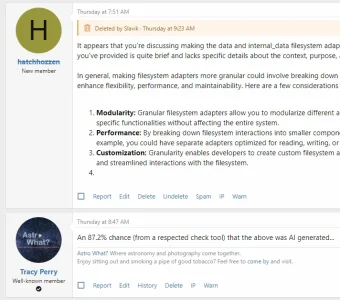

An 87.2% chance (from a respected check tool) that the above was AI generated...



[MattW]

An 87.2% chance (from a respected check tool) that the above was AI generated...

I want to know what the 4th consideration was going to be? Can't just leave us hanging like that.



[Kirby]

An 87.2% chance (from a respected check tool) that the above was AI generated...

brain.exe version 2.0 says that chance is 99,99%



[digitalpoint]

An 87.2% chance (from a respected check tool) that the above was AI generated...

Makes sense... Multiple women I've dated have independently mentioned I'm probably a robot or an alien (hah that's true btw).



[Paul B]

Just to clear up any confusion, the quote was referencing a now deleted spam post ... or possibly not ...



[digitalpoint]

Just to clear up any confusion, the quote was referencing a now deleted spam post ... or possibly not ...

Still holds true regardless.

Also explains why I never got an alert for response to this thread… the one I would have gotten would have been deleted.
