Mail management with Cloudflare

[Old Nick]

This is how i set mail in XenForo and Cloudflare :

• Cloudflare :
  • I created a custom address : XYZ@permaforo.net
  • Routing rules : XYZ@permaforo.net > Send email to > XYZ@icloud.com
  • there are Cloudflare SPF and DMARC entries too.
• XenForo :
  • Default email address : XYZ@permaforo.net
  • Contact email address : XYZ@permaforo.net
  • Email transport method : PHP built-in mail system
  • DKIM email authentication : XenForo is signing your outgoing emails with DKIM (I entered the settings in CF)

Well, all seems to works fine, contact form works fine, test email works fine, following content with email works fine...
So now i used a "virtual" email address XYZ@permaforo.net for all emails sent/received to/from my forum permaforo.net.

So I didn't even create an email address from my domain name via my registar.
But it all seems so simple to me, am I forgetting something, what are the disadvantages for such a configuration? I would like to point out that my forum is very inactive, so there are very few emails sent, and even fewer received.

Thanks.



[Sim]

Where do bounced emails go?

How are you handling bounced emails?



[Old Nick]

Where do bounced emails go?

How are you handling bounced emails?

I really don't know !!



[Old Nick]

O

Post in thread 'SparkPost Mail Transport for XF 2.3'

Oct 4, 2024

Oooh ! OK !!
I will restart configuring Sparkpost and try again !

• Old Nick



[Sim]

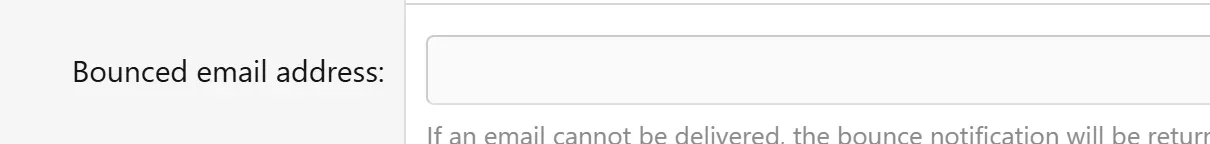

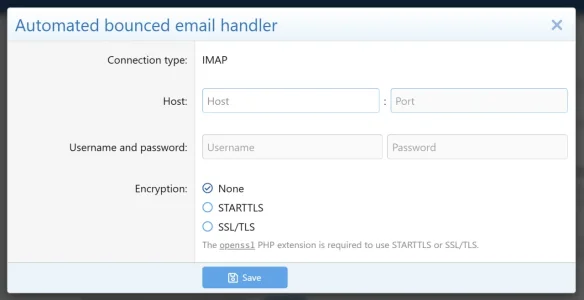

You probably want to set up a separate mailbox that you can access via IMAP (and is used for only this purpose) and then set the bounced email address and automated bounced email handler in the XF Email options.

Hint: the bounced email address really needs to be part of your domain - so set up another cloudflare alias for it.



[Old Nick]

Can i access to "virtual" email created in CF via IMAP, what are the settings?
Sorry, i understand nothing in this matter...

(Sorry for the ping-pong between this thread and the sparkpost thread !)



[Sim]

Can i access to "virtual" email created in CF via IMAP, what are the settings?
Sorry, i understand nothing in this matter...

No - you need to set up a new mailbox on Gmail, Outlook, iCloud, or somewhere else and then set up a virtual email in Cloudflare that redirects all mail to that mailbox. Then you set up XF to retrieve bounced emails via IMAP from that mailbox.



[Old Nick]

Ok, so i will use the IMAP credentials from Gmail (for example) here, correct?



But this field is filled with the virtual email address set in CF?




Assuming i set a routing rules from the virtual CF address created for boucing to the Gmail address



[Old Nick]

And now the question that kills: What is the point of getting bounced emails in a mailbox?



[Sim]

And now the question that kills: What is the point of getting bounced emails in a mailbox?

So that the user accounts you're sending to which are bouncing, are automatically disabled to prevent you from continually trying to send them emails - which is one of the signals that will get your IP address and domain blocked from sending emails by various email providers.

It aids with mail deliverability.



[Old Nick]

Ok, so i will use the IMAP credentials from Gmail (for example) here, correct?

@Sim Is it still possible?



[Old Nick]

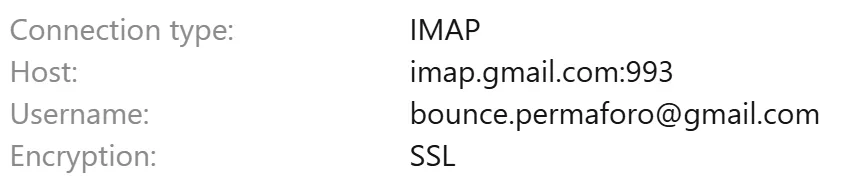

I found some infos... Can i test somewhere if it works?



[Old Nick]

Laminas\Mail\Exception\RuntimeException: Bounce connection error: cannot login, user or password wrong src/XF/Mail/Storage/Imap.php:35

#0 src/XF/EmailBounce/Processor.php(262): XF\Mail\Storage\Imap::setupFromHandler(Array)
#1 src/XF/SubContainer/Bounce.php(18): XF\EmailBounce\Processor::getDefaultBounceHandlerStorage(Object(XF\Pub\App))
#2 src/XF/Container.php(33): XF\SubContainer\Bounce->XF\SubContainer\{closure}(Object(XF\Container))
#3 src/XF/SubContainer/Bounce.php(46): XF\Container->offsetGet('storage')
#4 src/XF/Job/EmailBounce.php(20): XF\SubContainer\Bounce->storage()
#5 src/XF/Job/Manager.php(275): XF\Job\EmailBounce->run(8)
#6 src/XF/Job/Manager.php(205): XF\Job\Manager->runJobInternal(Array, 8)
#7 src/XF/Job/Manager.php(89): XF\Job\Manager->runJobEntry(Array, 8)
#8 job.php(46): XF\Job\Manager->runQueue(false, 8)
#9 {main}

array(4) {
  ["url"] => string(8) "/job.php"
  ["referrer"] => string(52) "https://permaforo.net/admin.php?cron/emailBounce/run"
  ["_GET"] => array(0) {
  }
  ["_POST"] => array(0) {
  }
}

I copy/paste the password so it's good, i guess my previous message could explain this error.

O

Post in thread 'Mail management with Cloudflare'

Oct 4, 2024

Ok, so i will use the IMAP credentials from Gmail (for example) here, correct?

@Sim Is it still possible?

• Old Nick



[Old Nick]

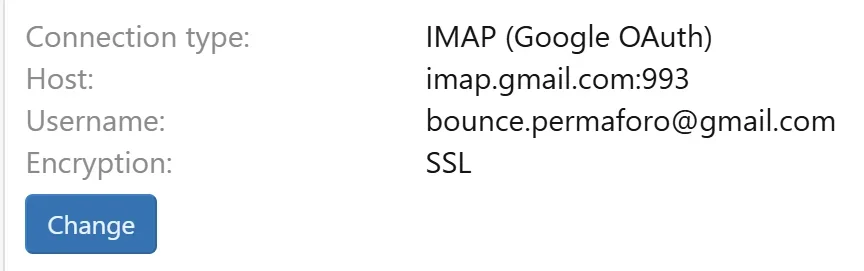

Seems to work now with OAuth



[Sim]

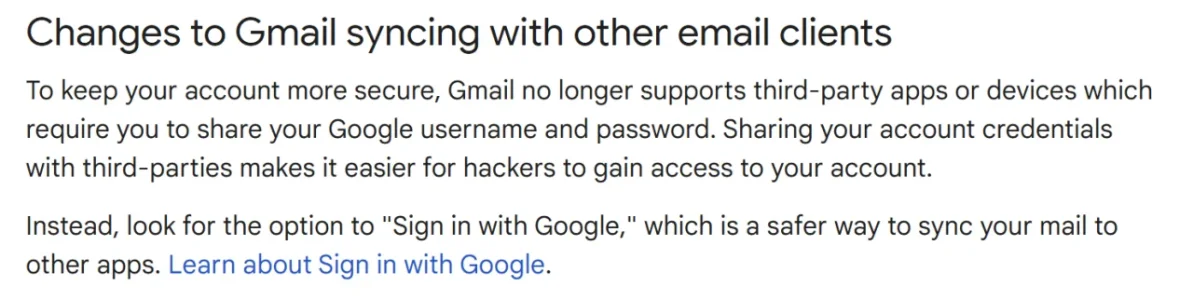

Yes, you need to use the Google OAuth method for Gmail - not IMAP.



[Old Nick]

Thanks for your help @Sim
