AndyB submitted a new resource:

GPX Viewer - Shows GPX files in a Google map.


Shows GPX files in a Google map.

(Example of GPX Viewer button)

View attachment 121082

(Example of GPX Viewer)

View attachment 121083
  1. Large easy to use Google map displayed full screen.
  2. Responsive code supports all devices.
  3. GPX Viewer button automatically inserted into message.
  4. All phrases start with gpxviewer_ for your convenience.
  1. Download and unzip it....

Read more about this resource...


Thx for this addon, it's really good! I have some ideas for make it better:
1. link from map page must route to thread page, not to homepage.
2. i think its really usable to put map on the thread page, not in new tab.

if you think its good maybe you make this.


After install this addon and copy the gpxviewer.php file from the add-on directory to the /misc/ folder i have trouble with view of all pictures attachments, which have the error:
Not Found
The requested URL /misc/lightbox was not found on this server.

What i do wrong? What can i do to resolve this trouble?



Well-known member
Just a heads-up for others, when I installed the add-on I was getting an Error (108).

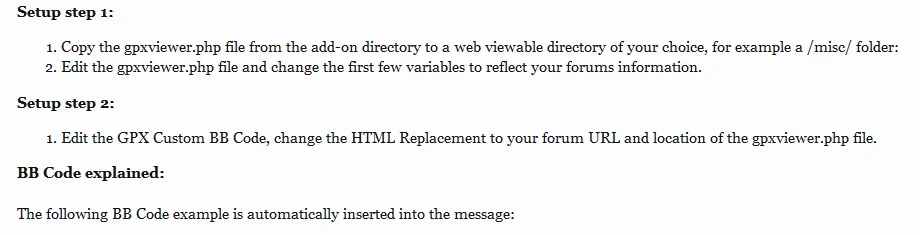

Don't overlook the Setup Steps (on the add-on's Overview page), especially this:
Edit the gpxviewer.php file and change the first few variables to reflect your forums information.

When I revised the file, I did not have my Attachments directory path correct. :oops:

After I revised this:
// path to attachments directory
$attachments_path = '/home/path/public_html/attachments/';

To this:
// path to attachments directory
$attachments_path = '/home/mypath/public_html/forums/internal_data/attachments/';

The error went away and it worked perfectly! (y)


Active member
Hi Andy,

after installing it, I got this error:

This page didn't load Google Maps correctly. See the JavaScript console for technical details.

The problem was the missing Google Maps Api key.
I created it on google, and I added this code into gpxviewer.php:

<script async defer src=""

Now it's working
