BB Code Option Validation

Discussion in 'XenForo Development Discussions' started by we_are_borg, Mar 1, 2016.

  1. we_are_borg

    we_are_borg Active Member

    Can you give an example based on this code

    <span style="background-color: {option}; padding: 0 2px">{text}</span>
    Usage: [bg=red]This is some text with a red background[/bg]
  2. Brogan

    Brogan XenForo Moderator Staff Member

    Something like this, which is what I use for my custom background colour bb code:
    Matthew S, we_are_borg and Chris D like this.
  3. Chris D

    Chris D XenForo Developer Staff Member

    This is the "Option Match Regular Expression" from the GALLERY BB code from XFMG:
    ^^^ Brogan's example is also good :)

    In terms of escaping the option, you may have already seen that in the other code example I gave:
    $type $formatter->filterString(array_shift($parts),
    array_merge($rendererStates, array(
    'stopSmilies' => true,
    'stopLineBreakConversion' => true
    For any further support with this, it would be most appropriate to create a new thread in the XenForo Development Discussions forum.
    Matthew S and we_are_borg like this.
  4. we_are_borg

    we_are_borg Active Member

  5. we_are_borg

    we_are_borg Active Member

    Thank you moderator for splitting this topic from the bug report.

    The code that brogan gave worked like a charm no lets see if i can read it correctly am i novice on regular expressions.

    What i read here if someone uses rgb to define the color that he is only allowed to use numbers and two coma's. But how do you limit the to max 3 numbers in the sequence, that not clear to me?

    The | i assume is the next part of the regular expression

    If some one put the color up in hex then its limited to numbers and a, b, c, d, e and f. The question here is how the expression knows that 1234567 is not a valid sequence and what is the {3} for

    The next one is for named colors you say only letters may be used. But what is the $/i for?

    Thank you for learning me new stuff i did not know you needed to use it to make BB Code save.
  6. Chris D

    Chris D XenForo Developer Staff Member

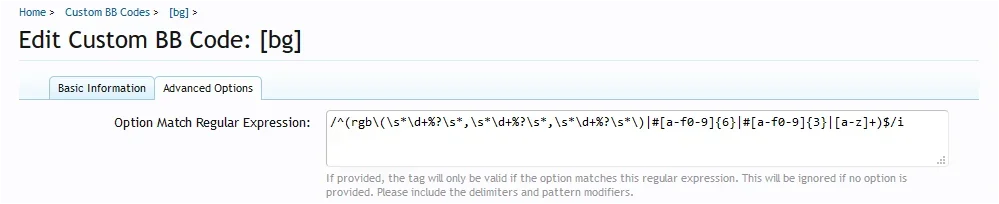

    FWIW I think you may have copied the regex from the screenshot incorrectly.
    In the rgb case it ensures that 3 numerical values can be entered, separated by commas.

    It matches a string that is exactly 3 characters long, and the characters must be one of 0-9 or a-f. 1234567 is not valid because it is more than 3 characters.

    There's another bit you missed before that which is similar, but it matches a string which is 6 characters long.

    The start of the regex has a ^, this asserts the match must begin at the start of the string. $ is the opposite. It asserts the match must now be at the end of the string.

    Typical example:

    "#ff0000" will match but
    "#ff0000 blah" will not match

    The / is the delimiter - there's one at the beginning, too. It's the start and end of the pattern. The i is a modifer. There are others, but i basically allows the match to be case insensitive. In short, this would match, too, despite the pattern seemingly only allowing a-f (lower case):

    ozzy47, we_are_borg and Brogan like this.
  7. we_are_borg

    we_are_borg Active Member

    Like your explanation its clear and easy to understand.
