New XenForo 1.1 feature, makes the forum at least 4% faster

Discussion in 'General XenForo Discussion and Feedback' started by Rigel Kentaurus, Oct 19, 2011.

  1. Rigel Kentaurus

    Rigel Kentaurus Well-Known Member

    When I read on the release notes that XenForo that we were getting templates as files ...
    I got excited. Finally. Would this mean the end for eval() .. plus, speed would probably increase. Then I started thinking .. should I be excited ?

    So, I decided to throw in a benchmark. Let's jump to the results, and then I'll talk about the process.

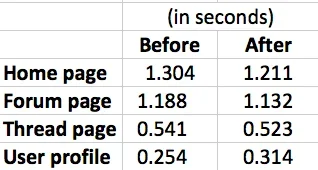

    The results

    For the test environment that was used
    Screen Shot 2011-10-18 at 8.57.54 PM.png

    The objective

    The objective of the test is measuring if, for the same set of data, in an isolated environment, loading the templates from files represents a change from loading them from the database, and measuring that by looking at load times.

    The test consisted of loading several pages repeatedly, and measuring the load time for said pages, then changing to templates into files, and repeating the identical, same experiment, and measuring the load time.

    The load time is considered from when the request is made until the last byte comes in.

    The process

    Hardware used

    Intel Core 2 Duo CPU, 2.53 Ghz
    4 GB DDR3 RAM
    SATA hard drive 5400

    Software used

    CentOS Linux 5.6
    PHP 5.3.6 with APC enabled
    Mysql 5.5.9 Community
    Apache 2.2

    The XenForo installation

    XenForo 1.1 beta 3 with
    18,000 threads
    300,000 posts
    13,000 users

    The machine is isolated from user access, it is a test environment, only the test engine has access to that. The test consisted of the following

    Loading the home page, opening a forum, opening a thread, browsing a user profile

    This test was simulated for 10 online active users, each of them doing the experiment for 10 times. This means that the sample data was taken from loading 10 X 15 times the home page (150 times)

    Everything was in the same machine, there is no network traffic.

    The pages were "warmed". This means, the experiment was run once to make sure any caches are set, the opcode optimizations were initialized and that the subsequent loads do not represent a "first load" experience that could add any bias to the sample.

    The data shown in the tables is from the second experiment. The test was repeated 3 more times to measure if the results could be attributed to other conditions. All the subsequent tests render similar proportions of 4%

    The details

    These are the details for the test. From there you can read that, for example, the Home Page went from a best scenario of 292 ms to 230 ms, and from an average of 1259 to 1144

    The throughput of the server was increased by roughly 0.1%, which means that you would be able to serve 0.1% more requests with this change.

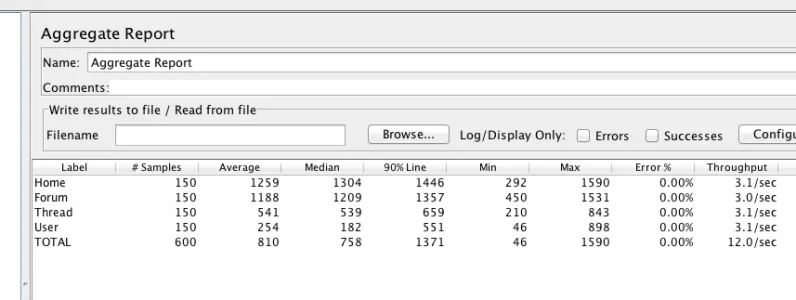

    Templates from database

    Screen Shot 2011-10-18 at 7.08.22 PM.png

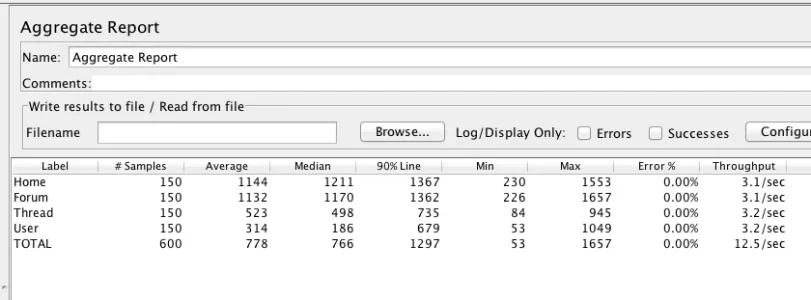

    Templates from files

    Screen Shot 2011-10-18 at 7.10.56 PM.png


    Templates in files will give you a small performance increase, it is faster. "How much" will depend on your exact server setup.

    If you are looking to squeeze the last bit of performance from your server this feature would be useful. It can't hurt and the only reason not to enable it is if you are short of disk space, you don't have APC anyway or you are finding a bug by using templates in files.

    If you are looking to improve your server performance because you are already in trouble this will do you no good. If your pages are slow this will only make them less slow, not fast. For that, it is way better to just upgrade to a better server or profile the actual performance bottleneck.

    The fact that this was added to XenForo proves the level of detail and attention that is put into the software. Few people will care about optimizing that last 0.1%
    nrep, Jarod, Rob Fritz and 3 others like this.
  2. Marcus

    Marcus Well-Known Member

    With the stock xenforo templates, template caching made my forum start page 14% faster (debug time: 0.096 seconds).

    When I removed the rendering of lots of subforums on the forum start page in node_forum_level_2 to speed up xenforo, template caching made only a difference of 4% (debug time: 0.065 seconds)
  3. Floris

    Floris Guest

    Turn off debug, and the forum will load even faster =D
    GeeksChat likes this.
  4. dutchbb

    dutchbb Well-Known Member

    I wonder if the difference increases or decreases as traffic/load increases. Thanks for the test.
  5. marioman

    marioman Active Member

    debug return execute all queries again with explain, that's will make your forum slow
    stop it if you don't need to check something
    time execution in debug no mean anything, so don't rely on it
  6. Marcus

    Marcus Well-Known Member

    marioman, I use debut to check which configuration is faster. I don't use debug for check how fast a page is delivered in a non-debug mode.
