XF 2.0 3 widgets horizontally aligned

[kankan]

Hi there,

Any way to achieve this by default :
Align some widget horizontallly :



If not, how can i perform this ?

Thank you.



[BassMan]

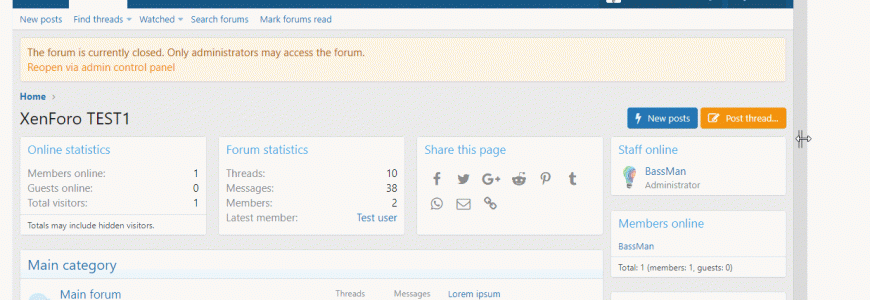

Like this?



[kankan]

@BassMan : exactly



[BassMan]

Ok, you can achieve this with a few manually steps.

1. Create an HTML widget, choose the position in my case Forum list: Above nodes and add this code to template field:

<div class="grid-main">
    <div class="grid">
        <xf:widget key="online_list_online_statistics" />
    </div>
    <div class="grid">
        <xf:widget key="forum_overview_forum_statistics" />
    </div>
    <div class="grid">
        <xf:widget key="forum_overview_share_page" />
    </div>
</div>

Edit widget keys to suit your needs.

2. Copy/paste this code to EXTRA.less file:

.grid-main {
    display: flex;
}
.grid {
    display: flex;
    flex-direction: column;
    flex: 1 1 250px;
}
.grid:first-of-type {
    margin-right: 2%;
}
.grid:last-of-type {
    margin-left: 2%;
}
.grid .block, .grid .block-container {
    height: 100%;
}
@media (max-width: @xf-responsiveMedium)
{
    .grid-main {
        display: inherit;
    }
    .grid:first-of-type {
        margin-right: inherit;
    }
    .grid:last-of-type {
        margin-left: inherit;
    }
}

This should be it.



[kankan]

Thank you. It worked fine.
Just facing a CSS issue with the middle blocks : those are sticked.



[BassMan]

In that case, use this in EXTRA.less:

.grid-main {
    display: flex;
}
.grid {
    display: flex;
    flex-direction: column;
    flex: 1 1 250px;
    margin-left: 2%;
}
.grid:first-of-type {
    margin-left: 0;
}
.grid .block, .grid .block-container {
    height: 100%;
}
@media (max-width: @xf-responsiveMedium)
{
    .grid-main {
        display: inherit;
    }
    .grid {
        margin-left: inherit;
    }
}



[BassMan]

I've updated the code. Please copy/paste again.



[kankan]

Nice Thank you!

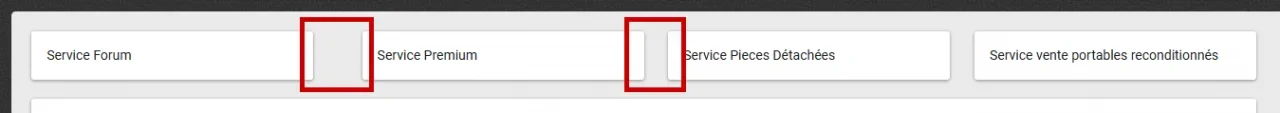

How can you reduce those different spaces ?



[BassMan]

I've updated the code. Please copy/paste again.



[kankan]

Thank you BassMan !



[kankan]

Re Bassman,
May i ask something regarding CSS.
I am trying to Add custom background for each Widget.
In widget page, i am adding the following code, but the background do not appear :

<span style="background-image: url("myimageurl/forum_bg.png");">
<center><b>my_content</b><br><br></span>

Any idea why?



[BassMan]

Try like this and add the code to EXTRA.less template:

.grid [data-widget-key="forum_overview_forum_statistics"] .block-container {
    background-image: url("myimageurl/forum_bg.png");
}

Change the data-widget-key and copy/paste the code for each widget and change the key.



[kankan]

Hello!
I add this in extra.less :

.grid [data-widget-key="service_forum"] .block-container {
background-image: url("https://www.forum-des-portables-asus.fr/forums/images/forum_bg.png");
}

in service_forum widget, do i have to add something except my content ?
In the state the background do not display



[BassMan]

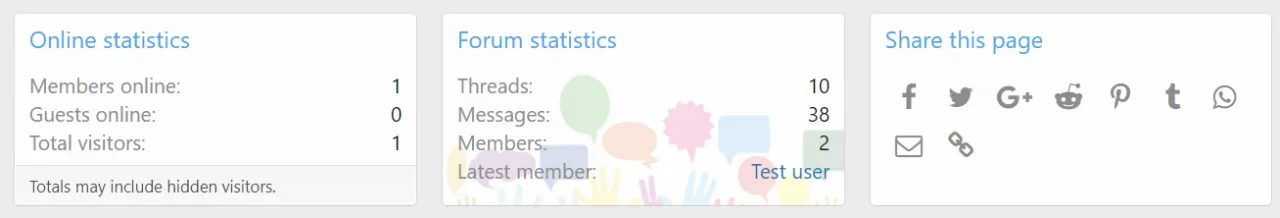

It works on my side:





Add the widget key of widgets you have inside (one of those three widgets). Above is an example of widget key for forum statistics.



[kankan]

Humm

I have this :

<style type="text/css">
    .block-minorHeader {display:none;}
  </style>

<xf:if is="$xf.visitor.isMemberOf([3])">
    <div class="grid-main">
    <div class="grid">
        <xf:widget key="service_forum" />
    </div>
    <div class="grid">
        <xf:widget key="service_premium" />
    </div>
    <div class="grid">
        <xf:widget key="service_detache" />
    </div>
    <div class="grid">
        <xf:widget key="service_refurb" />
    </div>
</div></xf:if>

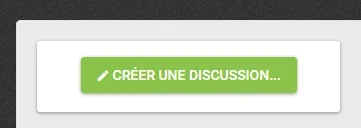

in service_forum widget this :

<center>
<a href="/forums/forums/-/create-thread" class="button--cta button button--icon button--icon--write rippleButton" data-xf-click="overlay">
<span class="button-text">
Créer une discussion...</span>
</a>
</center>

in extra.less :

.grid [data-widget-key="service_forum"] .block-container {
background-image: url("https://www.forum-des-portables-asus.fr/forums/images/forum_bg.png");
}

But no image in background :



[kankan]

Might be due to my Theme : UIX2



[BassMan]

Sorry, I'm on the road. Talk to you later via PM.



[kankan]

Sure thanks.



[Justwise]

Ok, you can achieve this with a few manually steps.

1. Create an HTML widget, choose the position in my case Forum list: Above nodes and add this code to template field:

<div class="grid-main">
    <div class="grid">
        <xf:widget key="online_list_online_statistics" />
    </div>
    <div class="grid">
        <xf:widget key="forum_overview_forum_statistics" />
    </div>
    <div class="grid">
        <xf:widget key="forum_overview_share_page" />
    </div>
</div>

Edit widget keys to suit your needs.

2. Copy/paste this code to EXTRA.less file:

.grid-main {
    display: flex;
}
.grid {
    display: flex;
    flex-direction: column;
    flex: 1 1 250px;
}
.grid:first-of-type {
    margin-right: 2%;
}
.grid:last-of-type {
    margin-left: 2%;
}
.grid .block, .grid .block-container {
    height: 100%;
}
@media (max-width: @xf-responsiveMedium)
{
    .grid-main {
        display: inherit;
    }
    .grid:first-of-type {
        margin-right: inherit;
    }
    .grid:last-of-type {
        margin-left: inherit;
    }
}

This should be it.

Hi @BassMan .. can you pls re-edit this code for me for a two widget horizontally aligned instead of three?

and is it possible to both widget 2 different div class? instead of just 'grid'. If it possible, kindly give them 2 different div class.
Thanks.



[BassMan]

Hi @BassMan .. can you pls re-edit this code for me for a two widget horizontally aligned instead of three?

and is it possible to both widget 2 different div class? instead of just 'grid'. If it possible, kindly give them 2 different div class.
Thanks.

Hi @Justwise

remove one of this from the code:

    <div class="grid">
        <xf:widget key="forum_overview_share_page" />
    </div>

Then in code <div class="grid"> for other two widgets add extra classes like<div class="grid class1"> and <div class="grid class2">, for instance.
