[XB] Custom Field Groups: Organize Fields Across XenForo & Add-ons 1.2.2

Organize and display user, thread, resource, media, and supported add-on fields using structured, manageable groups.

This add-on makes large custom field sets easier to manage and present while preserving existing field values, formatting, positions, ordering, and visibility rules.

---

Features:​

• Custom Group Classes: Add CSS classes to individual public field groups and style them in extra.less.
• 🗂 Custom Field Groups: Create, rename, reorder, and delete groups for supported custom field types.
• Flexible Field Assignment: Assign a group while editing a field.
• Grouped ACP Lists: Browse organized groups, ungrouped fields, and empty groups with filtering.
• 🏷 Public Field Sections: Optionally display grouped custom fields under named section headings on public pages.
• Group Icons: Choose an optional Font Awesome 5 icon for each group, displayed beside its heading in the ACP and on public pages.
• Responsive Group Layout: Choose stacked sections or two-column group cards in style properties. Narrow content areas use one column, while individual custom fields retain their existing formatting.
• Group Container Styling: Customize group text, backgrounds, borders, spacing, and additional CSS with shared settings and separate overrides for stacked sections and grid cards.
• ↕ Independent Ordering: Control group order while preserving the existing order of fields within each group.
• Sort Groups: Drag custom fields between groups and reorder fields within each group using the native XenForo sorting overlay.
• 👁 Smart Public Display: Automatically hide empty sections and display ungrouped fields without unnecessary headings.
• Preserved Field Locations: Keep fields in their existing public display locations when grouping is enabled.
• Native Layout Support: Works with standard field lists and supported dedicated field blocks and sidebars.
• Independent Field Types: Maintain separate groups for each custom field type.
• 🛡 Safe Group Deletion: Deleting a group removes the association without deleting custom fields or their stored values.
• Optional Add-on Support: Automatically support compatible field types when supported add-ons are installed or upgraded later.
• ⚙ Optional Public Grouping: Public sections are disabled by default and can be enabled independently for each group.

Field input forms and individual custom field tabs retain their standard layout.

---

Requirements:​

• [XB] Core Library 1.0.2+

---

Supported Content Types:​

• XenForo: User profile and thread fields.
• XenForo Resource Manager: Resource and resource review fields.
• 🖼 XenForo Media Gallery: Media fields.
• [XB] Game Database: Game and game list fields.
• [XB] Movie Database: Movie, TV title, and title list fields.
• [XB] Book Database: Book and book list fields.
• ❤ [XB] Donations: Campaign fields.
• [XB] Toplists: Toplist fields.
• [XB] Lessons: Course, lesson, and rating fields.
• [XB] Quizzes: Quiz fields.
• [XB] Recipes: Recipe and recipe list fields.
• [XB] Music Database: Album and album list fields.
• [XB] Quote Book: Quotation and author fields.
• [XB] XFRM: Resource Questions: Resource question fields.
• XenAddons Article Management System: Article and review fields.
• 🏷 XenAddons Classified Ads System: Classified ad fields.
• 🗃 XenAddons Item Management System: Item, review, and update fields.
• XenAddons Link Directory: Directory item and review fields.
• XenAddons Review Management System: Item and review fields.
• 🛍 XenAddons Showcase: Showcase item, review, and update fields.
• 🏟 XenAddons Sportsbook: Event fields.
• XenAddons User Blogs System: Blog entry and review fields.
• DragonByte eCommerce: Product, product review, order, license, and download version fields.
• 🛍 DragonByte Shop: Shop item fields.
• XR Product Manager: Product fields.
• [BR] Support Ticket System: Support ticket fields.
• 🎟 NixFifty Tickets: Support ticket fields.

---

Recommended Add-ons:​

• [XB] Custom Field Default Value: Automatically populate supported custom fields with predefined or user-field-based values.
• [XB] Custom Field Unique: Prevent duplicate values in selected custom fields.
• 👁 [XB] Custom Field View List Display: Display custom field values as structured lists instead of comma-separated text.
• ✏ [XB] Custom Field Edit: Let users edit custom field values on a separate page with dedicated permissions.
• 🛡 [XB] Custom Field Access: Restrict custom field access and visibility by user group.
• ↕ [XB] Custom Field Sorting: Reorder custom fields for XenForo and supported add-ons from a dedicated sorting interface.
• [XB] Custom Field Change Log: Track thread custom-field edits, optionally require approval, and restore previous values from edit history.
• ☑ [XB] Custom Field: Select All: Add a select/deselect-all control to multi-checkbox custom fields.

---

Useful for:​

• 🗂 Large Custom Field Sets: Keep extensive field configurations organized and easier to manage.
• Structured Presentation: Group related field values into clear sections on public pages.
• Multi-Add-on Communities: Manage custom fields consistently across XenForo and supported add-ons.
• 🛠 ACP Organization: Reduce clutter when administering many custom fields.
• 👁 Cleaner Content Pages: Present related information together without changing existing field behavior.

---

Screenshots:​

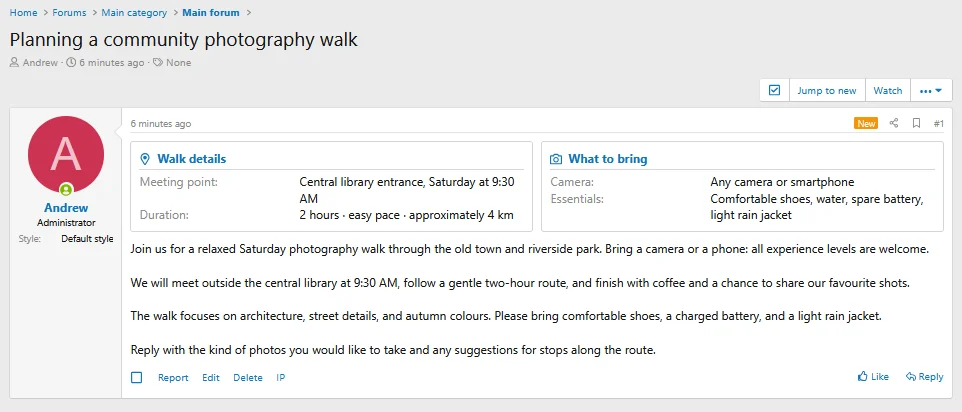

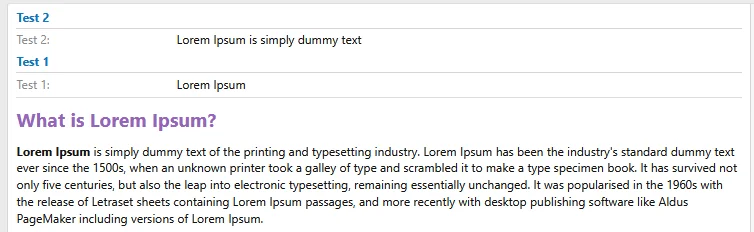

Public Display​

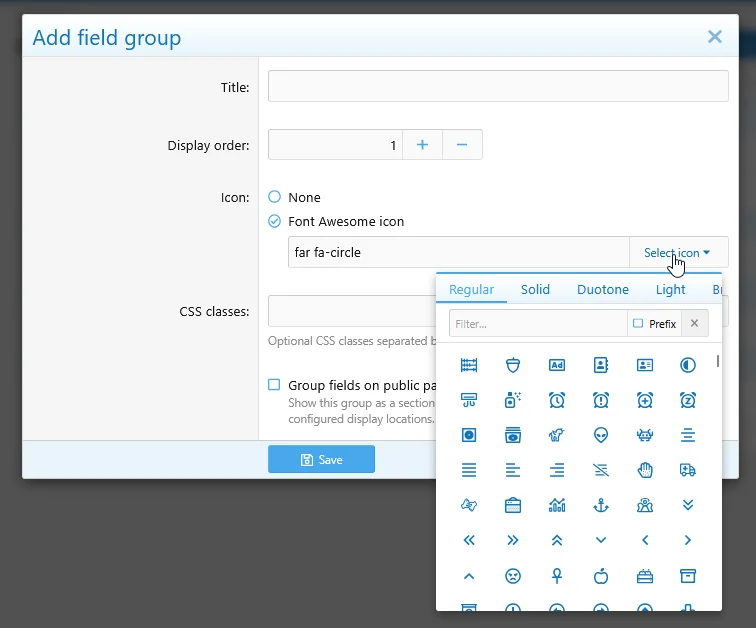

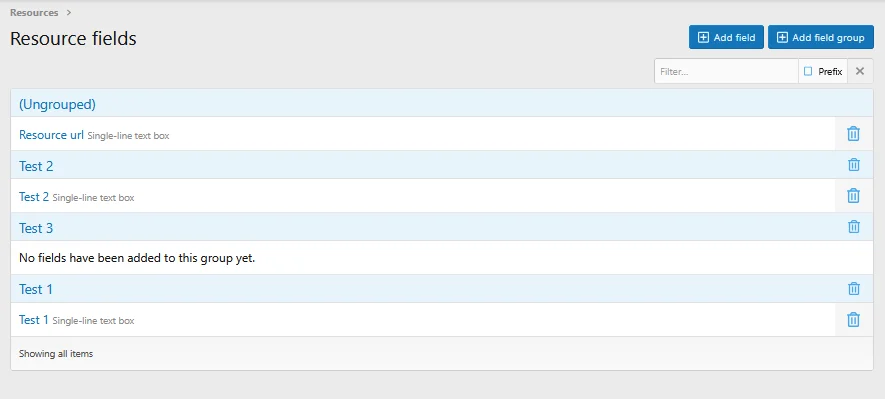

Group Management​

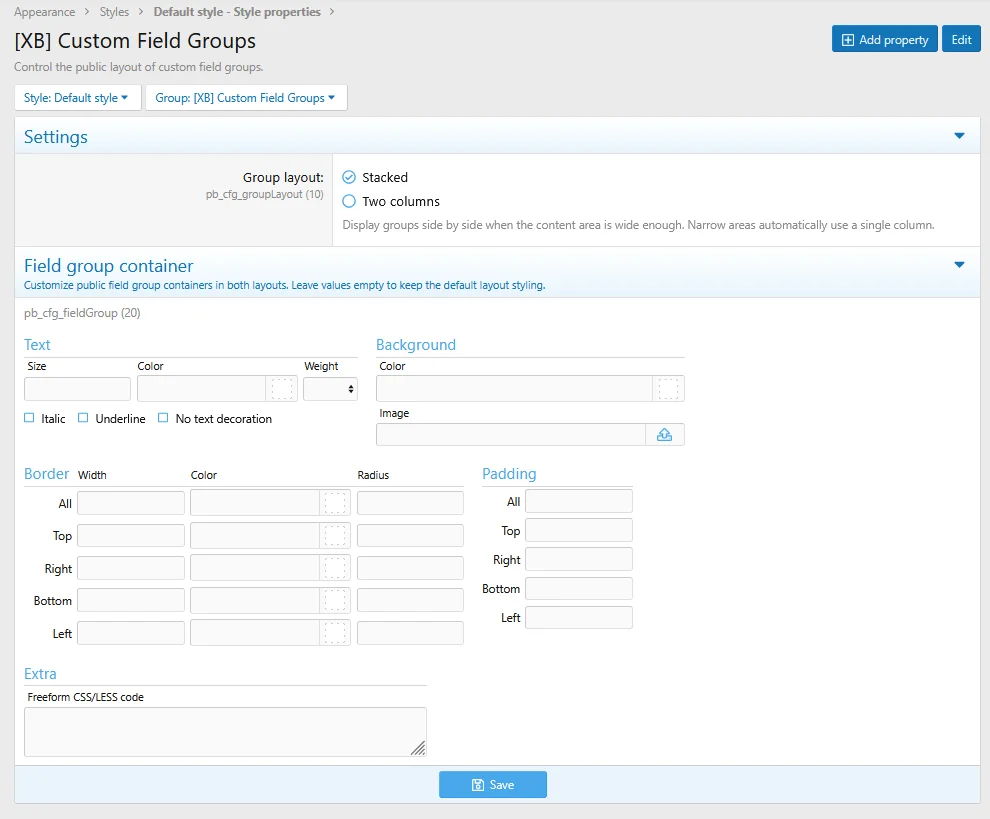

Appearance​
