- Compatible XF 2.x versions
- 2.3
- Additional requirements
- ## Requirements
- XenForo **2.3.7+**
- XenForo Media Gallery **2.3.7+**
- PHP 8.1+ (tested on 8.2)
- Visible branding
- No
Be sure to do backups!
NOTE: I don't own anything Apple, so I have not tested it on anything Apple. Part of the reason it is beta. This doesn't work in lightbox. You have to view them without it.
# AIXF Media360 — 360° Panoramas for XenForo Media Gallery
AIXF Media360 makes 360° (equirectangular) images feel native in XenForo Media Gallery.
It detects panoramic images and replaces the static photo with an interactive, draggable 360° viewer (powered by Pannellum) — right inside the standard media view.
---
## Install
1. Upload the release ZIP via Admin CP → Add-ons → Install/upgrade from archive.
2. After install, visit Media Gallery → any image that’s an equirectangular pano (2:1).
You should see drag-to-look, plus zoom and fullscreen controls.
### Using CDN (default)
The add-on loads Pannellum from a public CDN. No extra files or steps.
### Using local files (optional)
If your CSP blocks CDNs:
- Place local Pannellum files in the add-on (these are included if you used the “local” build):

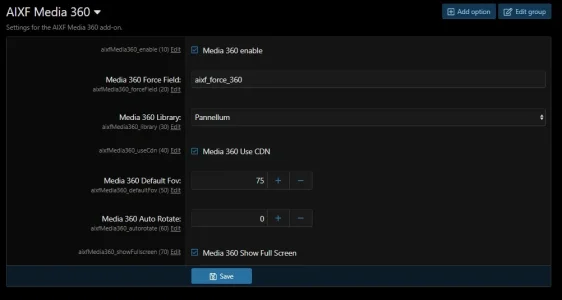

- In ACP → Options → AIXF Media360 (if you exposed an option), set Use CDN = Off.
If you didn’t add an ACP option, set
---
## How it works (short version)
Example mount (already injected by the add-on; shown here for reference):
---
## Recommended image sizes
Filetype: JPG (standard equirectangular).
EXR/HDR are not required for this viewer (you can use tonemapped JPGs).
---
## Troubleshooting
I only see a still image.
Most likely the image isn’t ~2:1. Check dimensions (e.g., 4096×2048). You can widen
I can drag, but no buttons.
The Pannellum CSS isn’t loaded. If you’re on CDN, ensure it isn’t blocked. For local mode, confirm this URL works in your browser:
Console shows 404 for init.js or pannellum.js.
CDN blocked by CSP.
Switch to local mode (see above), or loosen CSP for the CDN domain.
Lazy-load warnings.
The script waits for the actual
---
## Roadmap (feedback-driven)
NOTE: I don't own anything Apple, so I have not tested it on anything Apple. Part of the reason it is beta. This doesn't work in lightbox. You have to view them without it.
# AIXF Media360 — 360° Panoramas for XenForo Media Gallery
AIXF Media360 makes 360° (equirectangular) images feel native in XenForo Media Gallery.
It detects panoramic images and replaces the static photo with an interactive, draggable 360° viewer (powered by Pannellum) — right inside the standard media view.
Drop-in; no core file edits- Zoom & fullscreen controls
- Gentle auto-rotate (optional)
- Works with plain JPG equirectangular (2:1 aspect), e.g. 4096×2048 or 8192×4096
- CDN or local assets (your choice)
---
## Install
1. Upload the release ZIP via Admin CP → Add-ons → Install/upgrade from archive.
2. After install, visit Media Gallery → any image that’s an equirectangular pano (2:1).
You should see drag-to-look, plus zoom and fullscreen controls.
### Using CDN (default)
The add-on loads Pannellum from a public CDN. No extra files or steps.
### Using local files (optional)
If your CSP blocks CDNs:
- Place local Pannellum files in the add-on (these are included if you used the “local” build):
Code:
/js/aixf/media360/pannellum.min.js
/styles/aixf/media360/pannellum.cssIf you didn’t add an ACP option, set
data-cdn="0" in the mount (see “How it works”).---
## How it works (short version)
- On the media view page (
public:xfmg_media_view), the add-on injects a small mount div and a boot script. - The script waits for the original
<img>, checks if it’s ~2:1, hides it, and mounts Pannellum with the same image URL. - You can control behavior via
data-*flags on the mount.
Example mount (already injected by the add-on; shown here for reference):
HTML:
<div id="aixfPanoMount" class="js-aixf360"
data-enabled="1"
data-cdn="1" <!-- 1 = CDN (default), 0 = local -->
data-fov="75" <!-- initial zoom (HFOV) -->
data-autorotate="1.2" <!-- deg/sec; 0 = off -->
data-fullscreen="1" <!-- show fullscreen button -->
data-ratio-tolerance="0.05" <!-- 2:1 detection tolerance -->
style="width:100%;height:60vh"></div>---
## Recommended image sizes
- 4096×2048 (4K) — best compatibility across devices
- 8192×4096 (8K) — sharper on desktop; larger files
Filetype: JPG (standard equirectangular).
EXR/HDR are not required for this viewer (you can use tonemapped JPGs).
---
## Troubleshooting
I only see a still image.
Most likely the image isn’t ~2:1. Check dimensions (e.g., 4096×2048). You can widen
data-ratio-tolerance (e.g. 0.08) if your source is slightly off 2:1.I can drag, but no buttons.
The Pannellum CSS isn’t loaded. If you’re on CDN, ensure it isn’t blocked. For local mode, confirm this URL works in your browser:
Code:
/styles/aixf/media360/pannellum.cssConsole shows 404 for init.js or pannellum.js.
- Using
<xf:js src="aixf/media360/init.js" />is correct (don’t prefix withjs/). - If you built your own ZIP, ensure your release includes:
Code:
upload/js/aixf/media360/init.jsCDN blocked by CSP.
Switch to local mode (see above), or loosen CSP for the CDN domain.
Lazy-load warnings.
The script waits for the actual
<img> to finish loading; lazy-loading is fine. If your theme swaps the image node late, a short flicker can happen.---
## Roadmap (feedback-driven)
- GPano/XMP EXIF detection (beyond 2:1 ratio)
- Mobile gyroscope (orientationOnByDefault)
- “Share this view” deep links (yaw/pitch/hfov in URL)
- Hotspots (titles/links)
- Optional XenAddons Showcase support
