tabLinks width confusion

Discussion in 'Troubleshooting and Problems' started by Trombones13, Feb 6, 2011.

  1. Trombones13

    Trombones13 Well-Known Member

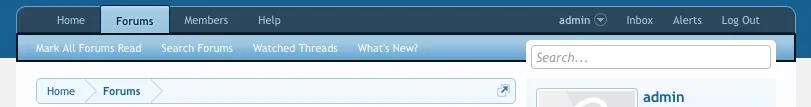

    XF Navbar Width.png
    Is the tabLinks portion of the navbar two pixels too wide? Adding a border shows it poking it out beyond the end of the page container and the navbar on the right side, and I don't want that, lol. Whether that's by design or not, how can I make a border that doesn't hang over like that? :confused:

    Thanks as always! :D

    Vilandra likes this.
  2. Jake Bunce

    Jake Bunce XenForo Moderator Staff Member

    The border is throwing off the width. I played with this for a while and came up with a solution.

    Set a fixed width for the forum:

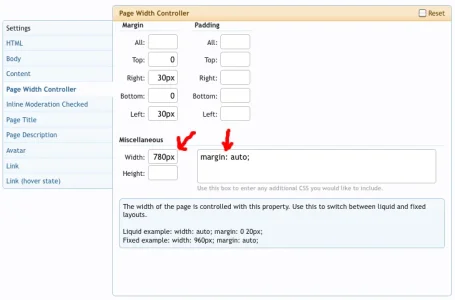

    Admin CP -> Appearance -> Style Properties -> General -> Page Width Controller

    Screen shot 2011-02-06 at 9.30.50 AM.png

    Then edit this template:

    Admin CP -> Appearance -> Templates -> navigation.css

    I have modified the width and border in this code. Notice how you can use xen:calc to subtract double the border size from the page width:

    Code:
    .navTabs .navTab.selected .tabLinks
    {
    	@property "navTabSelected.background";
    	background: @primaryLightish url('@imagePath/xenforo/gradients/navigation-tab.png') repeat-x top;
    	@property "/navTabSelected.background";

    	width: {xen:calc '@pageWidth.width - 4'}px;
    	padding: 0;
    	border: 2px solid;
    	overflow: hidden; zoom: 1;
    	position: absolute;
    	left: 0px;
    	top: {xen:calc '@headerTabHeight + 2'}px;
    	height: @headerTabHeight;
    	background-position: 0px -@headerTabHeight;
    	*clear:expression(style.width = document.getElementById('navigation').offsetWidth + 'px', style.clear = "none", 0);
    }

    This fixed the problem in my testing:

    Screen shot 2011-02-06 at 9.38.55 AM.png

    Vilandra likes this.
  3. Trombones13

    Trombones13 Well-Known Member

    That works; thanks, Jake! :) I decided I just needed a border-bottom in this case, but this is good to know for later. :D

  4. Vilandra

    Vilandra Active Member

    If anyone solves this for a liquid style, I'd be very grateful - it's driving me mad! :D

  5. skhms

    skhms Active Member

    Hi Vil, I think this something that you haven't solved yet. I checked a few styles on AD. ;)

    Don't know much about CSS so I hope this is okay. I use it on my site and I haven't noticed any problems anyway.

    In the template navigation.css
    Code:
    .navTabs .navTab.selected .tabLinks
    {
        @property "navTabSelected.background";
        background: @primaryLightish url('@imagePath/xenforo/gradients/navigation-tab.png') repeat-x top;
        @property "/navTabSelected.background";

    /*    width: 100%;    */          /* Skip width */
        right: 0px;                  /* Add right */
        padding: 0;
    /*    border: none;  */          /* Skip old border */
        border: 1px solid #FF0000;  /* New border */
        overflow: hidden; zoom: 1;
        position: absolute;
        left: 0px;
        top: {xen:calc '@headerTabHeight + 2'}px;
        height: @headerTabHeight;
        background-position: 0px -@headerTabHeight;
        *clear:expression(style.width = document.getElementById('navigation').offsetWidth + 'px', style.clear = "none", 0);
    }

    Vilandra likes this.
  6. Vilandra

    Vilandra Active Member

    Worked for me - thanks sk! :)
