Neil E.

Active member
#1
This one is just plain weird (Nav Tab still drives me crazy). Using this forum as an example, when I hover over the drop down arrow beside Members,
the menu pops up and the Members tab stays the same width.

On my forum, the Members tab gets a lot wider when the menu pops up. I can't find the cause, any ideas?
This happens for both Members and Help (left side of Nav Bar).

Tab width vs Menu works correctly on Profile/user, Inbox and Alerts (right side of Nav Bar).

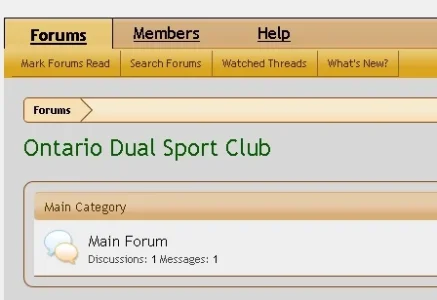

Pic 1 Normal no hover

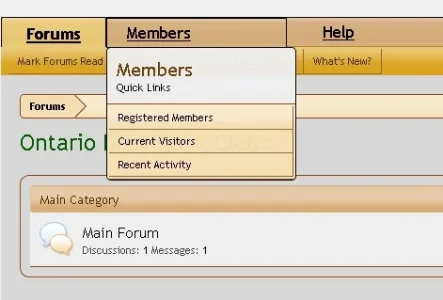

Pic 2 Hover over Members drop down arrow, Help pushed over

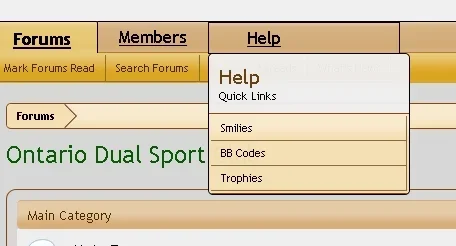

Pic 3 Hover over Help drop down arrow, note wider tab like Members

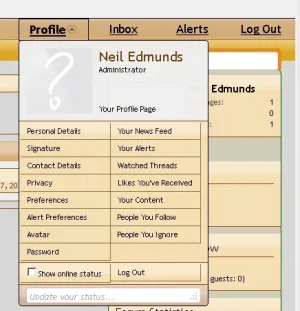

Pic4 Hover over Profile drop down arrow, tab width unchanged



Shelley

Well-known member
#3
have you added any excess padding to the following?

A link to your forum directing people to the issue would be better in isolating the issue btw.

Code:
.Popup .PopupControl.PopupOpen, .Popup.PopupContainerControl.PopupOpen


Neil E.

Active member
#4
Have you added any excess padding to the following?
Code:
.Popup .PopupControl.PopupOpen, .Popup.PopupContainerControl.PopupOpen

I don't see a direct match to your code. The closest I can find is in xenforo_popup.css

Code:
.Popup .PopupControl,
.Popup.PopupContainerControl
{
    display: inline-block;
    cursor: pointer;
}

    .Popup .PopupControl:hover,
    .Popup.PopupContainerControl:hover
    {
        @property "popupControlClosedHover";
        color: rgb(0, 0, 0);
        background-color: rgb(139, 69, 19);
        @property "/popupControlClosedHover";
    }

    .Popup .PopupControl:focus,
    .Popup .PopupControl:active,
    .Popup.PopupContainerControl:focus,
    .Popup.PopupContainerControl:active
    {
        outline: 0;
    }

    .Popup .PopupControl.PopupOpen,
    .Popup.PopupContainerControl.PopupOpen
    {
        @property "popupControl";
        color: @contentText;
        background: rgb(245, 220, 175) url('@imagePath/xenforo/gradients/tab-unselected-25px-light.png') repeat-x top;
        border: 1px solid rgb(0, 0, 0);
        @property "/popupControl";
    }

    .Popup .PopupControl.BottomControl.PopupOpen,
    .Popup.PopupContainerControl.BottomControl.PopupOpen
    {
        border-top-left-radius: @popupControl.border-bottom-left-radius;
        border-top-right-radius: @popupControl.border-bottom-right-radius;
        border-bottom-left-radius: @popupControl.border-top-left-radius;
        border-bottom-right-radius: @popupControl.border-top-left-radius;
    }

        .Popup .PopupControl.PopupOpen:hover,
        .Popup.PopupContainerControl.PopupOpen:hover
        {
            text-decoration: none;
        }

Since this relates to the Nav Bar, I thought the popup control from navigation.css would be the right place to look.

Code:
/* Links Inside Tabs */

.navTabs .navLink,
.navTabs .SplitCtrl
{
    @property "navLink";
    font-size: 13pt;
    font-family: Trebuchet MS;
    color: rgb(0, 0, 0);
    text-decoration: underline;
    background: rgb(185, 123, 43) url('@imagePath/xenforo/gradients/navigation-tab.png');
    border-top-color: rgb(0, 0, 0);
    display: block;
    float: left;
    vertical-align: text-bottom;
    text-align: center;
    outline: 0 none;
    width: 80px;
    @property "/navLink";

    <xen:if is="{$pageIsRtl}">*float: none; *display: inline; *zoom: 1;</xen:if>

    height: @headerTabHeight;
    line-height: @headerTabHeight;
}

    .navTabs .publicTabs .navLink
    {
        padding: 0 15px;
    }

    .navTabs .visitorTabs .navLink
    {
        padding: 0 10px;
    }

    .navTabs .navLink:hover
    {
        text-decoration: none;
    }

    /* ---------------------------------------- */
    /* unselected tab, popup closed */

    .navTabs .navTab.PopupClosed .navLink
    {
        color: @primaryLighter;
    }

        .navTabs .navTab.PopupClosed:hover
        {
            background-color: @primaryMedium;
        }

            .navTabs .navTab.PopupClosed .navLink:hover
            {
                color: @textCtrlBackground;
            }

    .navTabs .navTab.PopupClosed .arrowWidget
    {
        /* circle-arrow-down-light */
        background-position: -64px 0;
    }

    .navTabs .navTab.PopupClosed .SplitCtrl
    {
        margin-left: -14px;
        width: 14px;
    }

        .navTabs .navTab.PopupClosed:hover .SplitCtrl
        {
            /* nav_menu_gadget, height: 17px */
            background: transparent url('@imagePath/xenforo/xenforo-ui-sprite.png') no-repeat -128px {xen:calc '(@headerTabHeight - 17) / 2 + 1'}px;
        }

    /* ---------------------------------------- */
    /* selected tab */

    .navTabs .navTab.selected .navLink
    {
        @property "navTabSelected";
        font-weight: bold;
        color: @contentText;
        background: @primaryLightish url('@imagePath/xenforo/gradients/navigation-tab.png') repeat-x top;
        padding-top: 2px;
        margin-top: -1px;
        border: 1px solid @contentText;
        border-bottom: 1px none black;
        border-radius: 1px;
        border-top-left-radius: 2px;
        border-top-right-radius: 2px;
        @property "/navTabSelected";
    }

    .navTabs .navTab.selected .SplitCtrl
    {
        display: none;
    }

    .navTabs .navTab.selected .arrowWidget
    {
        /* circle-arrow-down */
        background-position: -32px 0;
    }

        .navTabs .navTab.selected.PopupOpen .arrowWidget
        {
            /* circle-arrow-up */
            background-position: -16px 0;
        }

    /* ---------------------------------------- */
    /* unselected tab, popup open */

    .navTabs .navTab.PopupOpen .navLink
    {
    }


    /* ---------------------------------------- */
    /* selected tab, popup open (account) */

    .navTabs .navTab.selected.PopupOpen .navLink
    {
        @property "popupControl";
        color: @contentText;
        background: rgb(245, 220, 175) url('@imagePath/xenforo/gradients/tab-unselected-25px-light.png') repeat-x top;
        border: 1px solid rgb(0, 0, 0);
        @property "/popupControl";
    }
I have to say that I'm confused about the ORDER in which the styling cascades. I understand that EXTRA.CSS in the final overlay, but how do the the other sheets work. If I'm not working at a higher level (closer to EXTRA) won't my changes effect a greater part of the forum?


Neil E.

Active member
#7
Thank you both. That corrects the action. I had changed that property because I was trying to space the tabs a bit farther apart. Is there another way to do it? Padding? Margins?


Shelley

Well-known member
#8
Thank you both. That corrects the action. I had changed that property because I was trying to space the tabs a bit farther apart. Is there another way to do it? Padding? Margins?
Increase the following from 15px to whatever preferred increased size.

Code:
.navTabs .publicTabs .navLink {
    padding: 0 15px;
}
If your wanting to do the same for the links to the far right increase the padding size to your preference.

Code:
.navTabs .publicTabs .navLink, .navTabs .visitorTabs .navLink {
    padding: 0 15px;
}


Neil E.

Active member
#9
Thanks again. I notice that you put up the code quickly and easily. Does a skilled person tend to go directly to the code and not bother with the more graphic oriented property groups in style properties?
