Custom page with HTML frames

Discussion in 'XenForo Questions and Support' started by masterchief, Jun 3, 2011.

  1. masterchief

    masterchief Well-Known Member

    I am attempting to create custom page with frames, allowing me to utilize external source html. Please advise. peace.

    Code:

    <div class="baseHtml messageText">

    <frameset cols="800,250">
        <frame src="left" />
        <frame src="main" />
    </frameset>

    </div>



  2. Kane Hart

    Kane Hart Active Member

    Going to bump this as I'm also in need of this now and you never got an answer.

  3. masterchief

    masterchief Well-Known Member

    I would like to use frameset in creation of page node. please advise. ~peace

  4. Brogan

    Brogan XenForo Moderator Staff Member

    I've moved your thread from the development forum as this only seems to be related to HTML code in a Page node template.

    Can you link to an example of what it is you're trying to do?

  5. masterchief

    masterchief Well-Known Member

    This is some sample code that I am playing around with locally on my desktop. Basically, I want to be able to edit frame source HTML outside of XenForo.

    I realize that the DOCTYPE, HTML and HEAD tags are not required for XenForo. Is any of this possible with XenForo?

    ~peace

    Code:

    <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Frameset//EN"
       "http://www.w3.org/TR/html4/frameset.dtd">
    <HTML>
    <HEAD>
    <TITLE>A simple frameset document</TITLE>
    </HEAD>
    <FRAMESET cols="20%, 80%">
      <FRAMESET rows="100, 200">
          <FRAME src="frame1.html">
          <FRAME src="frame2.gif">
      </FRAMESET>
      <FRAME src="frame3.html">
      <NOFRAMES>
          <P>This frameset document contains:
          <UL>
             <LI><A href="frame1.html">Some neat contents</A>
             <LI><IMG src="frame2.gif" alt="A neat image">
             <LI><A href="frame3.html">Some other neat contents</A>
          </UL>
      </NOFRAMES>
    </FRAMESET>
    </HTML>



  6. EQnoble

    EQnoble Well-Known Member

    You should go about that a different way in my opinion.

  7. EQnoble

    EQnoble Well-Known Member

    I tried to replicate what I think you were looking for using iframes, divs and some styling
    HTML:
    <style type="text/css">
    div.chiefwrapLeft20 {float:left; margin-left:0; width:20%;}
    div.chiefwrapRight80 {float:right; width:80%;}
    </style>

    <div class=chiefwrapLeft20>
      <iframe src="http://masterchief.com/your.html" frameborder="0" width="100%" height="100" scrolling="no" >
        <p>Your browser does not support iframes.</p>
      </iframe>

      <iframe src="http://xenxero.com/splashy4.png" frameborder="0" width="100%" height="200" scrolling="no" >
        <p>Your browser does not support iframes.</p>
      </iframe>
    </div>

    <div class=chiefwrapRight80>
    <iframe src="http://masterchief.com/maybeA.htm" frameborder="0" width="100%" height="300" scrolling="no" >
      <p>Your browser does not support iframes.</p>
    </iframe>
    </div>


  8. masterchief

    masterchief Well-Known Member

    We are now getting somewhere ... thanx. I am using following code in page node. The html files contain one line text declaring frame number, i.e. frame1.html contains 'This is frame number one' ... etc.

    Code:

    <style type="text/css">
    div.chiefwrapLeft20 {float:left; margin-left:0; width:20%;}
    div.chiefwrapRight80 {float:right; width:80%;}
    </style>

    <div class=chiefwrapLeft20>
      <iframe src="frame1.html" frameborder="0" width="100%" height="100" scrolling="no" >
        <p>Your browser does not support iframes.</p>
      </iframe>

      <iframe src="frame2.html" frameborder="0" width="100%" height="200" scrolling="no" >
        <p>Your browser does not support iframes.</p>
      </iframe>
    </div>

    <div class=chiefwrapRight80>
    <iframe src="frame3.html" frameborder="0" width="100%" height="300" scrolling="no" >
      <p>Your browser does not support iframes.</p>
    </iframe>
    </div>

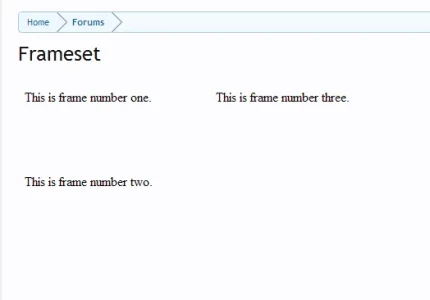

    This is the result, with this code you can now edit multiple frames on a page node outside of the ACP. ~peace


    Attached Files:

  9. masterchief

    masterchief Well-Known Member

    This HTML section for my custom page node. USes PHP in iFrame

    Code:

    <style type="text/css">
    div.chiefwrapLeft20 {float:left; margin-left:0; width:20%;}
    div.chiefwrapRight80 {float:right; width:80%;}
    </style>

    <div class=chiefwrapLeft20>
      <iframe src="frame1.html" frameborder="0" width="100%" height="100" scrolling="no" >
        <p>Your browser does not support iframes.</p>
      </iframe>

      <iframe src="frame2.html" frameborder="0" width="100%" height="200" scrolling="no" >
        <p>Your browser does not support iframes.</p>
      </iframe>
    </div>

    <div class=chiefwrapRight80>
    <iframe src="navigation.php" frameborder="0" width="100%" height="300" scrolling="no" >
      <p>Your browser does not support iframes.</p>
    </iframe>
    </div>


    navigation.php

    Code:

    <a href=./navigation.php?P=home>Home</a>
    <a href=./navigation.php?P=example>Example</a>
    <a href=./navigation.php?P=news>News</a>

    <?php
    $default = "home.php";
    $allowed = array (
        'example',
        'news',
    );
    if( isset( $_POST["P"] ) || isset( $_GET["P"] ))
        {
        $page = isset($_GET["P"]) ? $_GET["P"] : $_POST["P"];

        if( in_array( trim ( $page ), $allowed ))
            {
            $file = $page . ".php";
            if( (file_exists( $file )))
                {
                include( $file );
                }
            else
                {
                include( $default );
                }
            }
        else
            {
            include( $default );
            }
        }
    else
        {
        include( $default );
        }
    ?>


    Example: http://www.masterchief.com/pages/frameset
